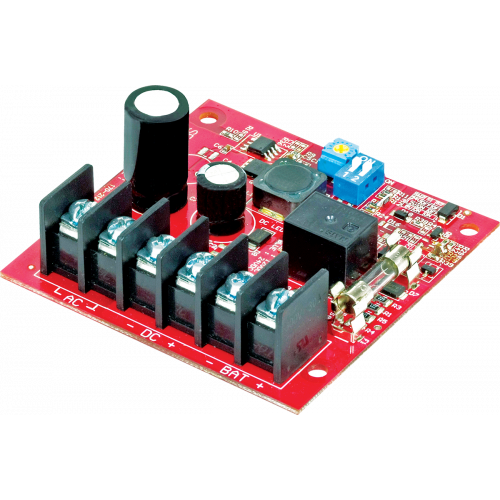

Power Supply/Charger - 2.5A Continuous, 3.0A Peak
Model Number: ST-2406-3AQ
- Selectable (6, 12, 24 VDC) voltage output
- Regulated and filtered output voltage
- Short circuit protection
- Thermal protection and compensation
- Built-in backup battery charger
- Switches to backup battery automatically in case of power loss
- Fused protection for battery charger
- 2 LEDs to indicate AC power input and DC power output status
- Compatible with lead acid or gel-type rechargeable battery
- Battery leads and foam tape included
- High efficiency at full load
- Heat-sink-free design
- Low battery cutoff when battery voltage drops below 20%
| Operating Voltage | 6, 12, 24 VDC |
| Status LEDs | AC Input: Green, DC Output Red Red/Blue (Blue indicates 24V) |
| Current (Continuous) | 2.5A |
| Current (Peak) | 3.0A |
| Output Current | 6V = 100mA, 12V = 220mA, 24V = 450mA |
| Master Fuse | 5 Amp |
| Low Battery Cutoff | When battery voltage is <20 % of set ouput voltage |
| Operating Temperature | -4°~149° F (-20°~65° C) |
| Dimensions | 2-7/8"x2-7/8"x1-3/8" (73x64x35mm) |
