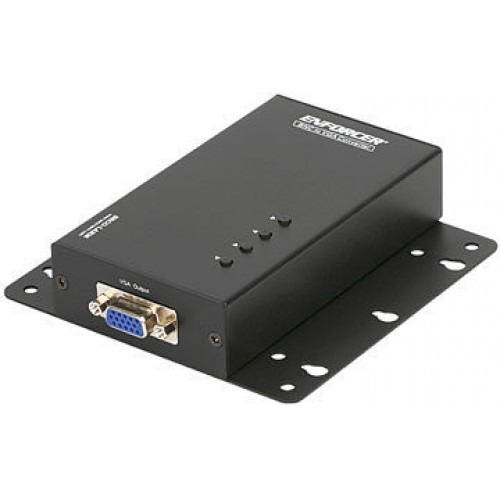

BNC-to-VGA Converters - Up to 720x480 Resolution (Discontinued)
Model Number: VC-1BAQ
Discontinued Product: Replaced by VC-3BAQ
The BNC-to-VGA converters allow displays with a VGA input to display BNC video signals. Traditional CCTV monitors can now be replaced by any display unit with a VGA input, including most LCD monitors.
The converters are compact and can be mounted nearly anywhere. For example, use the included VESA bracket for mounting on most VGA monitors.
Discontinued Product: Replaced by VC-3BAQ
The BNC-to-VGA converters allow displays with a VGA input to display BNC video signals. Traditional CCTV monitors can now be replaced by any display unit with a VGA input, including most LCD monitors.
The converters are compact and can be mounted nearly anywhere. For example, use the included VESA bracket for mounting on most VGA monitors.
- Converts almost any VGA monitor into a security monitor
- Compact, perfect for plug and play installations
- Desktop, wall, or VESA mountable (VESA mount included)
- On screen display (OSD) for image adjustment
- Automatically detects NTSC / PAL
- Video input auto-configure
- Memory retains settings after power failure
- Gold-plated BNC connector for longer life
- Includes 5VDC power supply
Type | BNC to VGA |
Input Signal | 1.0Vp-p 75Ω BNC Composite |
Output Signal | VGA: 0.7Vp-p RGB, 15-pin female D-sub |
Maximum Resolution | NTSC: 720x480 PAL: 720x576 |
Current Draw | 200mA@5VDC |
Power supply | 1A@5VDC, 2.5mm |
Dimensions | 5-3/4"x2-5/8"x1-1/16" (145x67x27 mm) |
Weight | 7.8-oz (220g) |
