BNC-to-VGA Converter - Up to 1280x1024 resolution
Model Number: VC-3BAQ

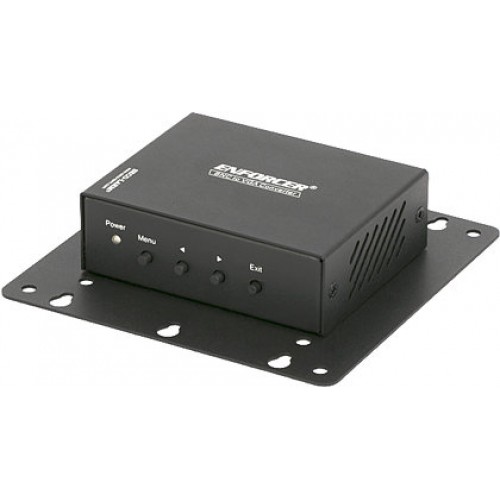

The converter is compact and can be mounted nearly anywhere. For example, the included VESA bracket mount can be installed onto most VGA monitors with VESA mounting holes.
The converter is compact and can be mounted nearly anywhere. For example, the included VESA bracket mount can be installed onto most VGA monitors with VESA mounting holes.
- Converts almost any VGA monitor into a security monitor
- Dual output for VGA and BNC
- Compact, unit is perfect for plug and play installations
- Desktop, wall, or VESA mountable (VESA mount included)
- On screen display (OSD) for image adjustment
- Automatically detects NTSC/PAL
- Video input auto-configure
- Memory retains settings after power failure
- Gold-plated BNC connector for longer life
- Supports resolutions up to 1280x1024
- Includes 5VDC power supply
| VESA mount | 75x75 mm, 100x100 mm |
| Type | BNC to VGA |
| Input Signal | Composite video 1Vp-p 75ohm BNC jack |
| Output Signal | VGA: 0.7 Vp-p RGB, 15 pin female D-sub, Composite video 1Vp-p 75ohm BNC |
| Maximum Resolution | Up to 1280x1024, NTSC: 720x480 PAL: 720x576 |
| Current Draw | 800mA@5VDC |
| Power supply | 1A@5VDC, 2.5mm |
| Dimensions | 3-3/8"x3-1/4"x1-1/16" (85x83x27 mm) |
| Weight | 7.2-oz (205g) |
