Wireless Video Door Phone, Complete System (Discontinued, Replaced with DP-266-1C3Q)
Model Number: DP-236Q

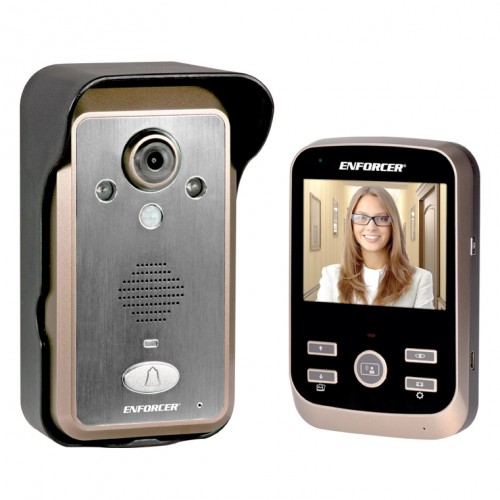

Introducing the ENFORCER® Wireless Video Door Phone, the handheld home entry solution. Observe visitors on the large 33/8" screen as they arrive, communicate with them, take photos for later viewing, and unlock a gate to grant entry - all from the wireless monitor. Use up to three monitors for viewing anywhere in the home. And with the camera's wide 170º viewing angle, you don't have to compromise on convenience or security.
Introducing the ENFORCER® Wireless Video Door Phone, the handheld home entry solution. Observe visitors on the large 33/8" screen as they arrive, communicate with them, take photos for later viewing, and unlock a gate to grant entry - all from the wireless monitor. Use up to three monitors for viewing anywhere in the home. And with the camera's wide 170º viewing angle, you don't have to compromise on convenience or security.
- Talk with visitors and unlock doors or gates via the monitor
- Handheld monitor's rechargeable battery allows convenient communication with visitors while moving around the premises
- Wide 33/8" monitor screen for enhanced viewing
- Connect up to two additional monitors (sold separately)
- Includes a kickstand and charging base for the monitor
- Egress input allows the door phone to be connected with a Request-to-Exit Plate or other egress device
- 9~16 VAC/VDC Operation - connects to most doorbell circuits
- Adjustable lens for a wide variety of viewing angles
- Camera's built-in PIR sensor takes photos of approaching visitors
- Up to 100 images can be stored in memory
- Camera has built-in LEDs for nighttime operation
- Camera is IP55 rated for outdoor use
- Tamper switch triggers alarm if camera is removed from its base
- Four programmable doorbell tones
Type | Color Camera |
Chip | CMOS |
Resolution | 480 TV lines |
Lens | 2mm |
Viewing Angle | 170º |
Operating Voltage | 9~16 VAC/5~16 VDC |
Relock Delay | 1~6 s |
Relay Output | 3A@250VAC/30VDC max. |
Current Draw | Active- [email protected], Standby- [email protected] |
Battery Life | Active- 4.4 Hours, Standby- 366 Hours (15 days) |
PIR Detection Range | 9' (3m) |
PIR Detection Angle | 138º |
Dimensions | 5-11/16" x 3-1/8" x 1-15/16" (144 x 80 x 50 mm) with bracket |
Weight | 4.3-oz (122g) |
Operating Temperature | 14º~122º F (-10º~50º C) |
Display | 3-3/8" (86mm) TFT |
Operating Voltage | 5VDC (adapter), 3.7VDC (Battery) |
Current Draw | Active- [email protected], Standby- [email protected] |
Battery Life | Active- 4.4 Hours, Standby-220 Hours (9 days) |
Operating Frequency | 2410.875~2471.625MHz |
RF Power | 120mW |
Dimensions | 5" x 3-3/8" x 7/8" (127 x 85 x 22 mm) |
Weight | 3.9-oz (110g) |
Operating Temperature | 32º~104º F (-0º~40º C) |
