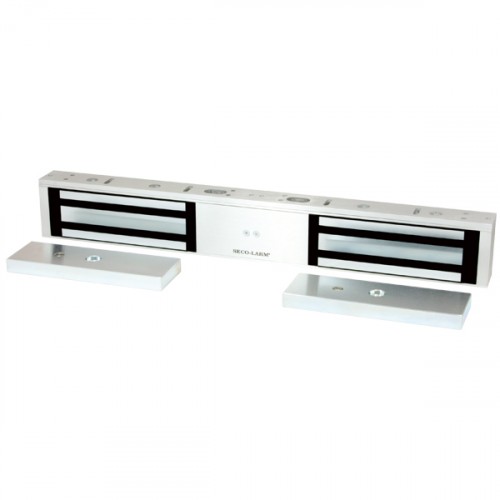

Double-Door Maglock – 1,200-lb Holding Force, UL Listed
Model Number: E-941DA-1K2Q
- UL 294 Listed (Access Control)
- Anodized aluminum housing (US 28)
- 12 or 24 VDC (selectable)
- No residual magnetism
- Adjustable mounting bracket
- MOV surge protection
- Complete mounting hardware for
typical installations - "L" bracket and "Z" brackets available for
easy mounting - Detachable face plate
- Limited Lifetime Warranty*
*Contact SECO-LARM for details. Applies in U.S.A. & Canada only.
| Holding Force | 1,200-lb. x2 |
| UL Listed | UL 294, ULC S104, UL 10B, UL 10C |
| Operating Voltage | 12/24 VDC |
| Current Draw | 12VDC:500mA@12VDC per door (1A total) 24VDC: 250mA@24VDC per door (500mA total |
| Operating Temperature | 32°~120° F (0°~49° C) |
| Electromagnet Dimensions | 21"x1-5/8"x2-5/8" (536x42x67 mm) |
| Armature Dimensions | 7-1/4"x5/8"x2-3/8" (185x16x61 mm) |
| Weight | 9-lbs. (4kg) |
