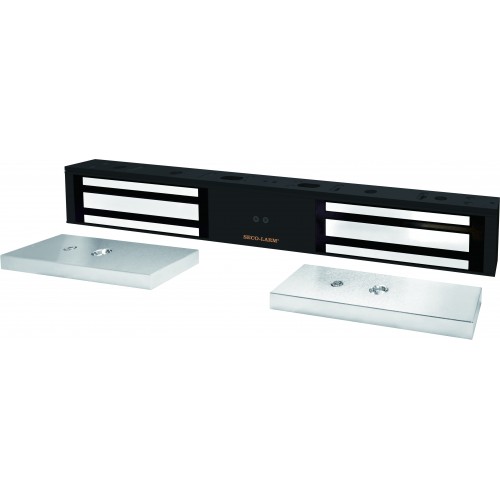

Double-Door Maglock – 1,200-lb Holding Force, Sensor, Status LED, UL Listed
Model Number: E-941DB-1K2P
- UL 294 Listed (Access Control)
- Anodized aluminum housing (US 28)
- 12 or 24 VDC (selectable)
- No residual magnetism
- Adjustable mounting bracket
- MOV surge protection
- Complete mounting hardware for
typical installations - "L" bracket and "Z" brackets available for
easy mounting - Detachable face plate
- Built-in dual-color status LED and bond sensor to show
locking status:
--- Green: Door is closed and locked
--- Red: Door not closed and/or locked
--- Off: Door in use / no power
--- Off: Door in use / no power
- Bond sensor output: 1A@30VDC
- Lifetime Limited Warranty*
*Contact SECO-LARM for details. Applies in U.S.A. & Canada only.
| Holding Force | 1,200-lb (545kg) per door |
| UL Listed | UL 294, ULC S104, UL 10B, UL 10C |
| Operating Voltage | 12 or 24 VDC |
| Current Draw | 500mA@12VDC per door (1A total) 270mA@24VDC per door (540mA total) |
| Operating Temperature | 32º~120º F (0º~49º C) |
| Electromagnet Dimensions | 21"x1-5/8"x2-5/8" (536x42x67 mm) |
| Armature Dimensions | 7-1/4"x5/8"x2-3/8" (185x16x61 mm) |
| Weight | 21-lb (10kg) |
| Bond Sensor | Yes |
| Status LED | Yes |
