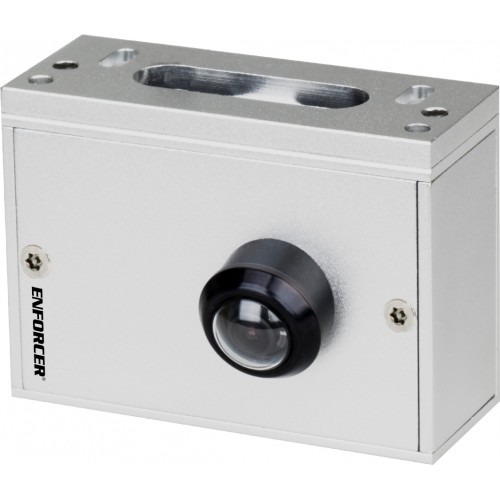

Maglock Camera for 1,200-lb Electromagnetic Locks, vandal resistant indoor/outdoor
Model Number: E-941EC2-N1Q
- Wide-angle 1.5mm lens
- Sony 1/4" Super HAD II CCD
- 600 TV lines
- Vandal-resistant
- Optional L bracket available -
E-941E-1K2/LQ - Camera can be rotated for best viewing angle
- Programmable reversible image
- Waterproof IP67 (Camera only)
- Integrate with existing and newly installed
SECO-LARM 1,200-lb Electromagnetic Locks(E-941SA-1200, E-941SA-1K2PQ, andE-941SA-1K2PD) - 3-Year warranty
Optional L Bracket to simplify
installations also available
Sample Applications:
Camera Alone

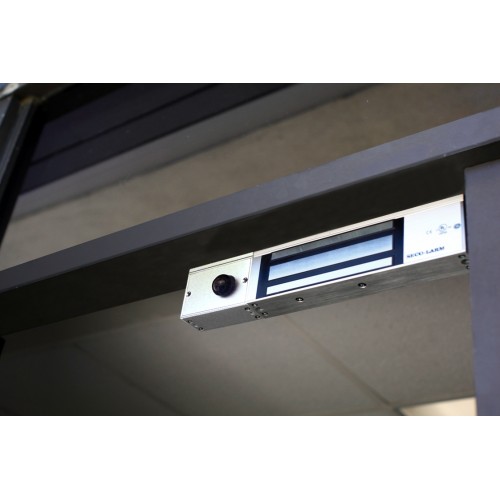

Maglock + Camera facing door
Maglock + Camera facing away from door
installations also available
Sample Applications:
Camera Alone
Maglock + Camera facing door
Maglock + Camera facing away from door
| Video Output Format | NTSC /PAL |
| Chip | Sony 1/4" Super HAD II CCD |
| Resolution | 600 TV lines |
| Picture Elements | 768(H)x494(V) / 752(H)x582(V) |
| Video Output | 1.0Vp-p composite output, 75Ω |
| Scanning System | 2:1 Interlace |
| Lens | 1.5mm |
| Minimum Illumination | 0.1 Lux at F/1.9 |
| Gain Control | Auto |
| Gamma Correction | 0.45 |
| S/N Ratio | >50dB |
| Power Source | 12VDC ±10% |
| Current Draw | 74mA±10mA |
| IP Rating | IP67 (Camera only) |
| Operating Temperature | 14º~122º F (-10º~+50º C) |
| Dimensions- Camera | 1-3/16" x 1-3/16" x 1-1/4" (30 x 30 x 32 mm) |
| Dimensions- Housing | 2- 5/8" x 1-9/16" x 3-15/16" (67 x 40 X 100 mm) |
| Weight- Camera Only | 2.1-oz (60g) |
| Weight- With Housing | 14.8oz (421g) |
