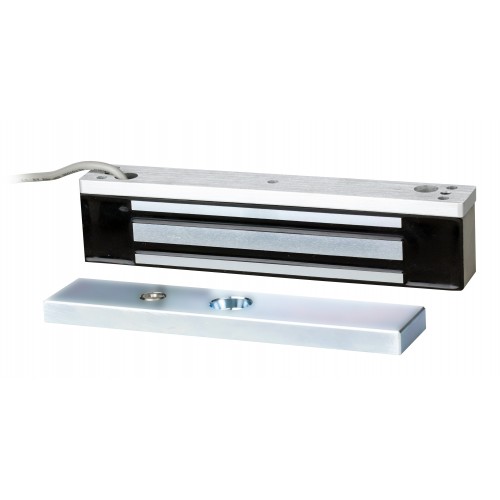

Single Door Maglock – 300-lb Holding Force, Indoor / outdoor
Model Number: E-941SA-300
- Holding force: 300-lb (136kg)
- 12VDC operation
- Anodized aluminum housing
- No residual magnetism
- MOV surge protection
- Complete mounting hardware included
- 36" (91cm) hookup wire included
- Waterproof (IP67) for indoor/outdoor use
- CE listed
- RoHS compliant
| Holding Force | 300-lb (136kg) |
| Operating Voltage | 12VDC±10% |
| Current Draw | 315mA@12VDC |
| IP Rating | IP67 Waterproof |
| Operating Temperature | 14º~131º F (-10º~55º C) |
| Certification | CE |
| Electromagnet Dimensions | 6-3/4"x1"x1-1/4" (170x23x32 mm) |
| RoHS Compliance | Yes |
| Armature Dimensions | 6"x3/8"x1-1/4" (152x10x32 mm) |
| Case Shipping Weight | 31-lb (14kg) |
| Weight | 2-lb 13.5-oz (1.29kg) |
| Case Quantity | 10 pcs |
