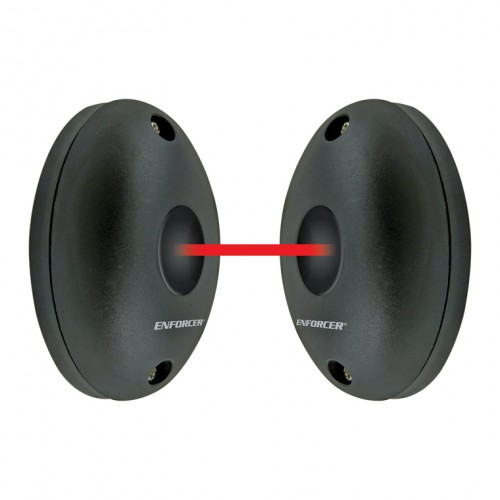

Miniature Single Photobeam Sensor, 50ft (discontinued)
Model Number: E-961-S50TB
Discontinued Product: Replaced by E-964-S50-TB
Discontinued Product: Replaced by E-964-S50-TB
- 10~24VDC Operaton
- Built-in AGC control to filter out lighting disturbances
- Signal strength indicator for easier alignment
- LED indicator for power, signal strength, and alarm
- Small size for a less conspicuous installation
- Simple to install
- Weatherproof for indoor and outdoor use (IP65)
- Up to 50ft (15m) sensing distance
- Mounting hardware included
| Type | Mini Single Photoelectric Beam Sensor |
| Current Draw | Transmitter- 15mA@12VDC, Receiver- 30mA@12VDC |
| Number of Beams | 1 |
| Sensing Range | 3~50ft (1~15m) |
| Operating Voltage | 10~24VDC |
| Interupt Speed | 50ms |
| LED Beam Spread Angle | Approximately ±10° |
| Light Source | Infrared LED, wavelength 940nm |
| LEDs - Red | Indicates transmitter and receiver are not aligned or beam is broken. (Alarm) |
| LEDs - Yellow | Dims/off when receiver's signal is weak / off when beam is broken |
| LEDs - Green | Indicates connected to power |
| Output | NO/NC relay (set by jumper, default is N.C.) 0.5A@30VAC/VDC |
| Operating Humidity | 0~95% |
| Laser Wavelength | 940nm |
| Operating Temperature | -13°~131°F (-25°~55°C) |
| Dimensions | 3" x 1-15/16" x 1-3/16" (76 x 48 x 30 mm) |
| Weight | 1.2-oz (34g) |
| Enclosure | IP65 |
