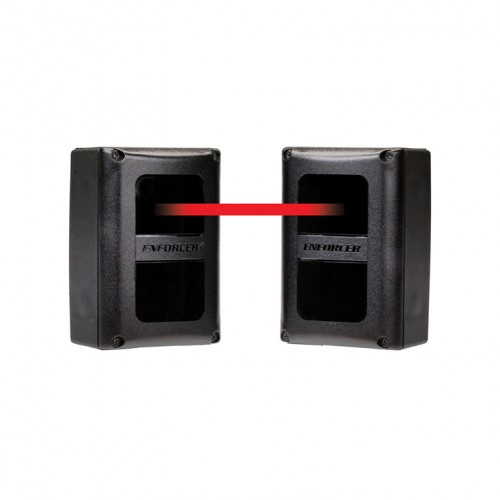

Single Photoelectric Beam Sensor, 90ft (Discontinued)
Model Number: E-961-S90WQ
- 90Ft (30m) sensing distance for protecting large openings or
wide roadways - Weather-proof to IP66 standards for indoor and
outdoor use - Mounts flat or at a 90-degree angle to the wall with no need for
extra brackets - Adjustable lens angle
- Transmitter power can be adjusted to match
local environment - 1A relay output (NO/NC/COM)
- AC/DC 10~24V operation, non-polarity connection
- Internal terminal block for
easy wiring - Mounting screws included
Typical Applications
- Gates or garage doors
- Overhead doors
- Parking lots
- Driveways
- Warehouses
| Type | NIR Through-Beam Photoelectric Sensor |
| Current Draw | 33.5mA (Tx), 27.5mA (beam aligned), 13mA (beam broken) (Rx) |
| Sensing Range | 90' (30m) |
| Operating Voltage | AC/DC, 10~24V |
| Reaction time | 100ms (Max) |
| Light Source | IR LED |
| LEDs - Red | ON for standby (TX) |
| LEDs - Green | show power (RX) |
| Output | 1A, 120VAC, NO/NC/COM |
| Operating Temperature | -13º~140º F (-25º~60º C) |
| Dimensions | 3-3/8” x 2-3/8” x 1-7/16” (86.5 x 59 x 40 mm) |
| Alignment Angle | Horizontal +/-5º, vertical +/-5º |
| Emitting Element | Infrared LED |
| Transmitter Adjust | Long vs. short distance |
| Illumination | Lamplight <10,000 lux, sunlight <30,000 lux |
| Noise Resistance | 1,500 Vp-P/1us |
| Vibration Resistance | 10~55 Hz/1.5mm, 2 hours in X.Y.Z. phase |
| Weatherproof | IP66 standard |
| Safety | CE standard |
| Material | Case - nylon, lens - polycarbonate |
| Ambient Temp. | -13º~140º F (-25º~60º C) |
