IR Curtain Sensors for indoor/outdoor access control, 25ft range (Discontinued)

Model Number: E-9611-2B25

Discontinued Product

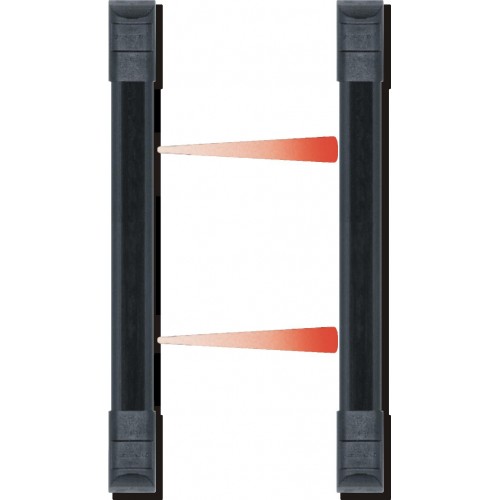

These infrared photobeam curtain/barrier sensors are perfect for installation in windows, doorways, skylights, fence tops, any place where space is limited.
Suitable for indoor and outdoor perimeter security, the trigger is programmable for simultaneous breaking of any single or 2 adjacent beams. The design features rugged aluminum construction, and an anti-tamper circuit for triggering an alarm if power is cut or the end cap is removed.
No synchronizing wires are required and the LED alignment indicator makes installation easy. L-brackets and mounting hardware are included.

Rugged aluminum construction
LED alignment indicator
No synchronizing wires required
NO/NC relay output
Weatherproof IP65 construction
Slimline design (7/8" x 1-5/16" cross section)
Trigger by simultaneously breaking 2 adjacent beams or any single beam (programmable)
For windows, doorways, etc., where space is limited
L-brackets and mounting hardware included
Multi-Frequency: Reduces interference and eliminates crosstalk when multiple units are used in close proximity to one another

Specifications

Type	IR Curtain Sensors for Indoor/Outdoor Access Control
Current Draw	Standby- 80mA, Active- 60mA
Number of Beams	2
Sensing Range	25' (8m) outdoor, 50' (16m) indoor
Operating Voltage	12~24VDC
Reaction time	0.5~20 ms
Detection System	Simultaneous break of 2 adjacent beams or any single beam (programmable)
LEDs	(On): powered, aligned properly, (Flash): when beam is broken, (Off): no power
Case material	IP65 Al alloy
Output	NO/NC relay output, 1A @ 12~24VDC
Operating Temperature	-49º~131º F (-45º~55º C)
Dimensions	11-1/4" x 1-5/16" x 7/8" (285 x 33.5 x 22.3 mm) [Length x Width x Height]
