Passive Video, Power & Data Balun - DC Plug and Jack, RJ45, (discontinued)
Model Number: EB-P101-20VQ
The new EB-P101-20VQ video, power and data (VPD) balun provides an inexpensive, flexible solution for sending both data and power on CCTV signal lines.
Passive Video Baluns allow a CCTV camera's video signal to be transmitted over low-cost CAT5 unshielded twisted pair (UTP) cable instead of costly coax cable. They are suitable for full-motion color and monochrome cameras and provide a quick, low-cost way to connect CCTV cameras to a monitor, multiplexer, or video recorder at up to 2,000ft (610m) away.
The new EB-P101-20VQ video, power and data (VPD) balun provides an inexpensive, flexible solution for sending both data and power on CCTV signal lines.
Passive Video Baluns allow a CCTV camera's video signal to be transmitted over low-cost CAT5 unshielded twisted pair (UTP) cable instead of costly coax cable. They are suitable for full-motion color and monochrome cameras and provide a quick, low-cost way to connect CCTV cameras to a monitor, multiplexer, or video recorder at up to 2,000ft (610m) away.
- Transmits up to 1,300ft (400m) color video or up to 1,950ft (600m)
B/W video* - Transmits power for 12/24
VAC/VDC cameras - Transmits data up to
984ft (300m) - High immunity from interference
- Includes DC plug and DC jack
- Pigtails for flexible installation
- Uses low-cost Cat5e/6 cable instead of costly
coaxial cable - RJ45 Jack for easy installation
- Passive operation – No external
power required - Built-in surge protection
Signal Type | NTSC, PAL, SECAM |
Max. Range | B/W - 1,950' (600m) Color - 1,300' (400m) |
Maximum input | 1.1Vp-p |
Insertion loss | <2dB per pair from DC~6MHz |
Return loss | >15dB from DC~6MHz |
Common Mode Rejection | >40 dB, 15KHz~6MHz |
Power | No power required |
Wire Type | UTP (Unshielded Twisted Pair) 16~24 AWG |
Wire Category | Cat2~Cat6 |
Camera Side - Data Out | 2 Wires |
Camera Side - Power Out | DC plug or DC jack |
Camera Side - Video In | BNC |
Cable Side - Data In | RJ45 |
Cable Side - Power In | RJ45 |
Cable Side - Video Out | RJ45 |
Impedance | Coax, Male BNC- 75Ω @ 1MHz, Terminal - 100Ω @ 1MHz |
Attenuation | DC~6MHz, 6.6 dB max |
BNC Connection | Silver Plated |
Data Range | 984’ (300m) |
Frequency response | DC~6MHz |
Max. amperage | 1.1A@12VDC |
Power Range | 656’ (200m)@12/24 VAC/VDC |
UTP Connection | Silver plated |
Video Format | NTSC, PAL, SECAM |
DC Loop resistance | 52Ω/1000’ (52Ω/305m) |
Differential capacitance | 19pF/ft max. (62pF/m max.) |
Operating Humidity | 0~95% (non-condensing) |
Operating Temperature | 32º~131º F (0º~55º C) |
Storage Temperature | -4º~158º F (-20º~70º C) |
Cable Length | 5" (127mm) |
Case | ABS plastic |
Weight | 2.3-oz (65g) |

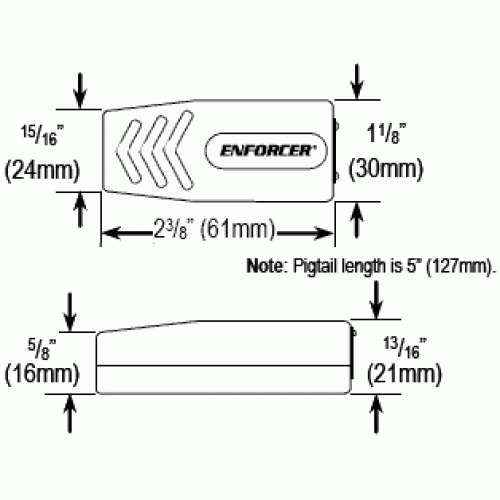

Dimensions | 2-3/8” x 1-1/8” x 13/16” (61 x 15 x 21 mm) |
