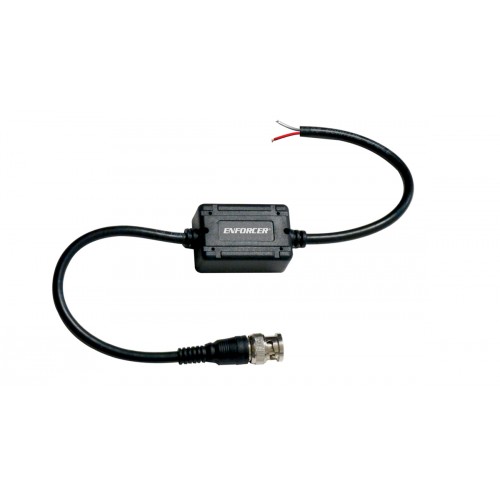

Weatherproof Passive Video Balun
Model Number: EB-P101-25WQ
The fast, easy, and low-cost way to connect a CCTV camera to a monitor, multiplexer, or video recorder. Video baluns allow the video signal of a single CCTV camera to be transmitted long distances over low-cost Cat5e/6 unshielded twisted pair (UTP) cable. They are great for both full-motion color and full-motion monochrome cameras, and increase the flexibility of where such cameras can be mounted. These CCTV baluns also work over existing UTP cabling, making them perfect for use in nearly any building or across an entire campus.
The fast, easy, and low-cost way to connect a CCTV camera to a monitor, multiplexer, or video recorder. Video baluns allow the video signal of a single CCTV camera to be transmitted long distances over low-cost Cat5e/6 unshielded twisted pair (UTP) cable. They are great for both full-motion color and full-motion monochrome cameras, and increase the flexibility of where such cameras can be mounted. These CCTV baluns also work over existing UTP cabling, making them perfect for use in nearly any building or across an entire campus.
- Weatherproof for outdoor applications
- Transmits up to 1,300ft (400m) color video or up to 1,950ft (600m)
B/W video - Passive operation - No external
power required - Uses low-cost Cat5e/6 cable instead of costly
coaxial cable - High immunity from interference
- Pigtails for flexible installations
- Built-in surge protection
Max. Range | B/W- 1,950' (600m), Color- 1,300' (400m) |
Maximum input | 1.1Vp-p |
Insertion loss | <2dB per pair from DC~6MHz |
Return loss | >15dB from DC~6MHz |
Common Mode Rejection | >40 dB, 15KHz~6MHz |
Power | No power required |
Wire Type | UTP (Unshielded Twisted Pair) 16~24 AWG |
Wire Category | Category 2 or better |
Impedance | Coax, Male BNC- 75Ω @ 1MHz, Two Wires- 100Ω @ 1MHz |
Attenuation | DC~6MHz, 6.6dB max. |
Frequency response | DC~6MHz |
UTP Connection | Silver plated |
Video Format | NTSC, PAL, SECAM |
DC Loop resistance | 52Ω/1,000ft (52Ω/305m) |
Differential Capacitance | 19pF/ft max. (62pF/m max.) |
Operating Humidity | 0~95% (Non-condensing) |
Operating Temperature | 32º~131º F (0º~55º C) |
Storage Temperature | -4°~158° F (-20°~70° C) |
Cable Length | 5" (127mm) |
Case | ABS Plastic |
Weight | 0.7-oz (20g) |
Dimensions | 1-1/8" x 11/16" x 11/16" (30 x 18 x 18 mm) |
