16-Channel Passive Video Transceiver Hub (Discontinued)

Model Number: EB-P116-01Q

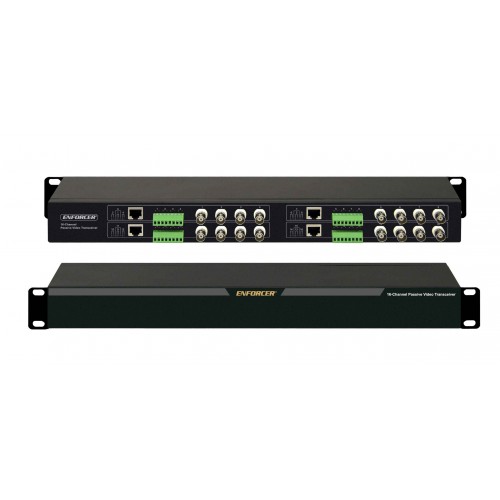

The ENFORCER EB-P116-01Q Passive 16-Port Video Transceiver allows CCTV cameras to connect to a DVR, video switcher, or multiplexer via inexpensive Cat5e/6 unshielded twisted pair (UTP) cable. This transceiver is a great way to cut the cost and complexity of security networks by eliminating the need to run expensive coaxial cable to multiple CCTV cameras.

The ENFORCER 16-Channel Passive Video Transceiver allows CCTV cameras to connect to a DVR, video switcher, or multiplexer via inexpensive Cat5e/6 unshielded twisted pair (UTP) cable.
- Transmits up to 1,300ft (400m) color video or up to 1,950ft (600m) B/W video
- Built-in surge protection
- Passive operation – No external power required
- Transmits video over Cat5e/6
- Removable terminal blocks or RJ45 connectors
- Connects to cameras, DVRs, multiplexers, and other devices
- Rack-mount design integrates easily with existing rack-mount installations

Specifications

Number of Channels	16
Range	B/W- 1,950ft (600m), Color- 1,300ft (400m)
Video Format	NTSC, PAL, SECAM
Maximum Input	1.1Vp-p
Frequency Response	DC~6MHz
Insertion Loss	<2dB per pair from DC~6MHz
Return Loss	>15dB from DC~6MHz
Common/differential mode rejection	>40dB, 15kHz~6MHz
Wire Type	UTP 24~16 AWG
Wire Category	Cat2~Cat6
UTP Connection	Silver plated
Attenuation	DC~6MHz, 6.6dB max.
Impedance	Coax, male BNC- 75Ω@1MHz, Terminal block- 100Ω@1MHz, RJ45- 100Ω@1MHz
DC Loop Resistance	52Ω/1,000ft (52Ω/305m)
Differential Capacitance	19pF/ft max. (62pF/m max.)
Power	No power required
Operating Temperature	32º~131º F (0º~55º C)
Storage Temperature	-4º~158º F (-20º~70º C)
Operating Humidity	0~95 % (Non-condensing)
Case	Galvanized steel
Weight	44-oz (1,250g)
Dimensions	16-15/16” x 3-5/16” x 1-13/16” (430 x 85 x 45 mm)
