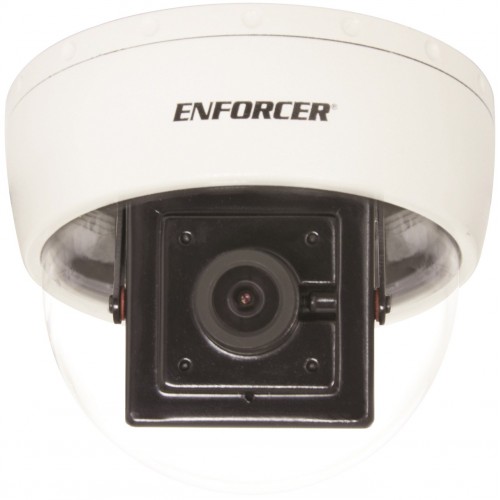

Mini Vandal Dome CCTV Camera (Discontinued)
Model Number: EV-2125-N2WQ
- Heavy-duty, vandal-resistant design
- 1/3" Sony Super HAD II CCD
- 2.9mm Lens
- 480 TV Lines
- Small 3" (76mm) diameter
- Weatherproof (IP65)
- Low current draw
| Type | Ultra-Mini Vandal Dome Camera |
| Chip | 1/3" SONY Super HAD II |
| Horiz. Resolution | 480 TV lines |
| Pickup Elements | 510x492 pixels (HxV) |
| Minimum Illumination | 0.1 Lux/F1.2 |
| Sync | Internal |
| Video Output | 1Vp-p composite output, 75Ω, NTSC |
| Lens | 2.9mm |
| S/N Ratio | >48dB (AGS OFF) |
| Shutter Control | Auto Electric Shutter (AES) |
| Operating Voltage | 12VDC±10% |
| Current Draw | 60mA |
| Gamma Correction | 0.45 |
| Gain Control | Auto Gain Control (AGC) |
| IP Rating | IP65 |
| Operating Temperature | -4º~122º F (-20º~+50º C) |
| Dimensions | 3"x2-3/8" (76x60 mm) |
| Weight | 6.4-oz (182g) |
