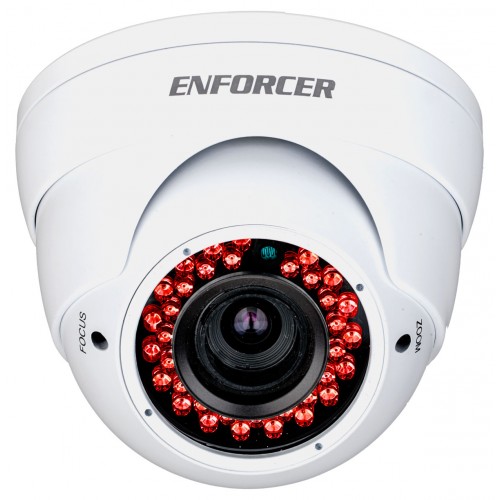

2.8~12 mm Varifocal Lens, Vandal Rollerball Camera, 700 TV Lines, 960H, White (Discontinued)
Model Number: EV-2706-NFWQ
- Sony 1/3" Super HAD II CCD
- 700 TV Lines
- 960H High resolution
- 2.8~12mm lens
- 36 IR LEDs, 100ft (30m) IR range
- 360º Triple-Axis Rotation
- Heavy-duty vandal-resistant design
- Day/Night operation. 0 Lux LEDs on, 0.02 Lux LEDs off
- Cables concealed in bracket to
prevent tampering - Rugged, weatherproof (IP65) construction
- Split-glass design to eliminate
IR reflection - Mounting brackets available in white and gray
| Type | IR Day/Night Color Ball-Mount Vandal Dome Hi-Res Camera |
| Chip | Color: 1/3" Sony Super HAD II CCD |
| Horiz. Resolution | 700 TV lines |
| Pickup Elements | 976x494 (NTSC), 976x582 (PAL) |
| 960H | Yes (In order to take advantage of 960H resolution, the camera must be used with a 960H DVR) |
| Minimum Illumination - IR On | 0.0 Lux |
| Minimum Illumination- LEDs off | 0.02 Lux |
| Scanning System | 2:1 Interlace |
| Sync | Internal |
| Video Output | 1.0Vp-p composite output, 75Ω |
| Lens | 2.8~12mm |
| No. of IR LEDs | 36 (850nm) |
| LED Range | 100ft (30m) |
| S/N Ratio | >52dB |
| DSS (Digital Slow Shutter) | N/A |
| Operating Voltage | 12VDC |
| Current Draw | LEDs off- 100mA, LEDs on- 400mA |
| IP Rating | IP65 |
| Operating Temperature | -4º~131º F (-20º~+55º C) |
| Dimensions | 4-11/16"(D) x 3-7/8"(H), (119x98 mm) |
| Cable Length | 34" (86cm) |
| Weight | 1-lb, 13-oz (820g) |
