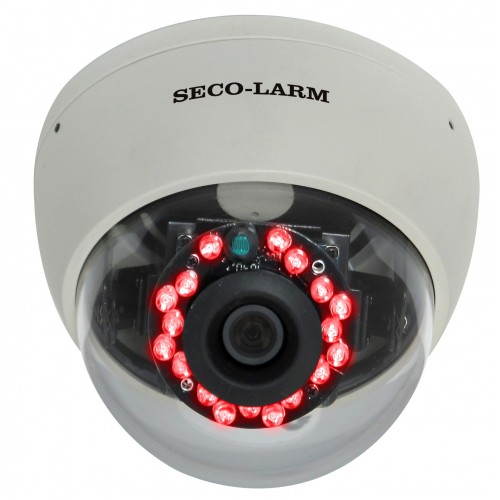

Mid-Size Vandal Dome CCTV Camera with IR LEDs, 3.6mm Lens, 540 TV Lines (Discontinued)
Model Number: EV-2766-N3WQ
These new SECO-LARM Mid-sized Vandal Color Dome Cameras feature a multi-axis gimbal mount allowing 360° rotation and a 0°~90° tilt for ceiling and wall mounting, plus a Sony 1/3" Super HAD II CCD chip for superior picture quality under most lighting conditions with excellent resolution and low lux, with 18 IR LEDs and a CDS sensor for LED control, all in a compact enclosure. They also feature Auto Electronic Shutter (AES), Auto Gain Control (AGC), Auto White Balance, and work with 12VDC.
These new SECO-LARM Mid-sized Vandal Color Dome Cameras feature a multi-axis gimbal mount allowing 360° rotation and a 0°~90° tilt for ceiling and wall mounting, plus a Sony 1/3" Super HAD II CCD chip for superior picture quality under most lighting conditions with excellent resolution and low lux, with 18 IR LEDs and a CDS sensor for LED control, all in a compact enclosure. They also feature Auto Electronic Shutter (AES), Auto Gain Control (AGC), Auto White Balance, and work with 12VDC.
Type | Mid-Size Vandal Color Domes with IR |
Chip | Color: 1/3" Sony Super HAD II CCD |
Horiz. Resolution | 540 TV lines |
Pickup Elements | 768x494 |
Minimum Illumination | 0-lux (LEDs ON) |
Sync | Internal |
Video Output | 1 Vp-p composite output, 75Ω |
Lens | 3.6mm |
No. of IR LEDs | 18 |
LED Range | 65ft (20m) |
S/N Ratio | >48 dB |
Shutter Control | Auto Electronic Shutter (AES) |
Operating Voltage | 12VDC±10% |
Current Draw | LEDs OFF- 100mA, LEDs ON- 200mA |
Gain Control | Auto |
White Balance | Auto |
IP Rating | IP65 |
Operating Temperature | -4º~122º F (-20º~+50º C) |
Dimensions | 4-1/4"x3-1/2" (108x89mm) |
Weight | 18-oz (500g) |
