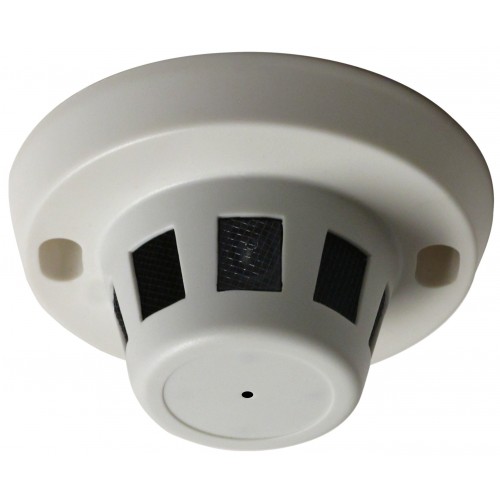

Covert Ceiling Mount Camera (Discontinued)
Model Number: EV-6620-N3WQ
- Camera is mounted in a smoke-detector style housing to provide
discreet surveillance - 1/3" Sony Super HAD II CCD
- 3.7mm pinhole lens (78° viewing angle)
- 960H Resolution, 700 TV lines
- 12VDC Operation
- 100mA Current draw
| Type | Covert Ceiling Mount Color Camera |
| Chip | 1/3" Sony Super HAD II CCD |
| Horiz. Resolution | 600 TV lines |
| Pickup Elements | 768(H)x494(V) |
| Sync | Internal |
| Video Output | NTSC, 1.1Vp-p composite output, 75Ω |
| Lens | 3.7mm pinhole |
| S/N Ratio | >48dB (AGC Off) |
| Shutter Control | 1/60~1/100,000 sec. |
| Operating Voltage | 12VDC |
| Current Draw | 100mA |
| Gain Control | Auto |
| Operating Temperature | 14º~122º F (-20º~+50º C) |
| Dimensions | 4-3/4"x2-1/4" (120x57mm) |
| Weight | 5-oz (135g) |
