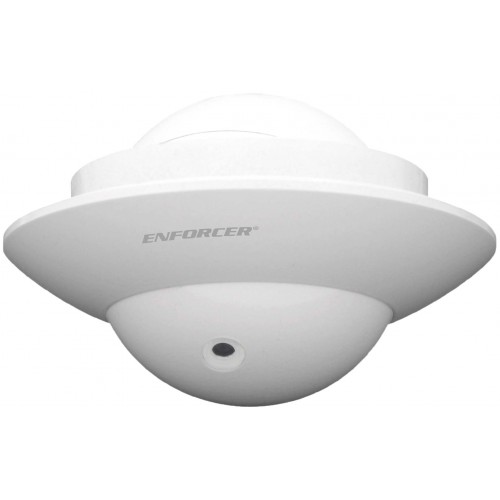

Flush-Mount CCTV UFO Camera ( Discontinued )
Model Number: EV-6640-N3WQ
- 1/3" Sony Super HAD II CCD
- 3.7mm Pinhole lens
- 700 TV Lines, 960H High Resolution
- Low-profile design, extends outward only one inch
- Day/Night operation captures images even in low light
- Minimum 0.05 Lux
- No exposed screws, tamper-resistant
- Lens rotates for mounting to ceilings or walls

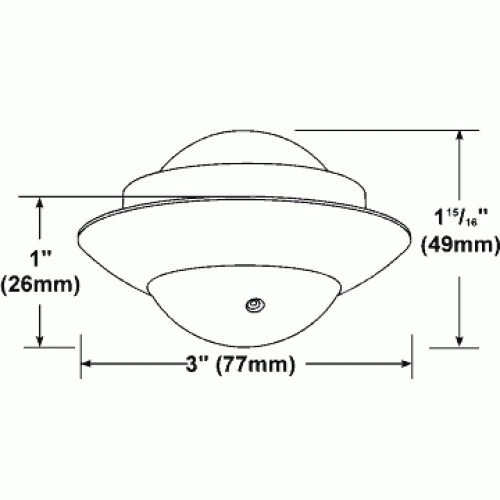

- Small size: 3"x115/16" (77x49 mm)
- Compatible Surface-Mount Bracket
- Included Accessory- CA-161T
| Housing Color | White |
| Type | Flush-mount low-profile UFO camera |
| Formats | Analog |
| CCD | 1/3" Sony Super HAD II CCD |
| Horiz. Resolution | 700 TV lines, 960H |
| Viewing Angle | 80° |
| Pickup Elements | 976(H) x 492(V) |
| TV Lines | 700, 960H |
| 2D-NR | Yes |
| DWDR | Yes |
| Minimum Illumination | 0.05 Lux |
| Sync | Internal |
| Video Output | 1.0Vp-p composite output, 75Ω |
| Lens | 3.7mm |
| S/N Ratio | >48dB |
| Shutter Control | Auto Electronic Shutter (AES), 1/60~1/120,000 sec. |
| Operating Voltage | 12VDC ±10% |
| Current Draw | 130mA±10mA |
| Gamma Correction | 0.45 |
| Gain Control | Auto |
| White Balance | Auto |
| IP Rating | IP66 |
| Operating Temperature | -4º~122º F (-20º~50º C) |
| Dimensions | 3"x3"x1" (77x77x26 mm) (Protuding from wall) |
| Weight | 3.6-oz (103g) |
