42-IR LED 1000 TVL Bullet Camera (Discontinued)
Model Number: EV-C1303-NMGQ
SECO-LARM's IR Day/Night Color Varifocal CCTV Camera has 42 Hi-Intensity LEDs with DSS (Digital Slow Shutter @ 32x), and WDR (Wide Dynamic Range) all in one, as well as On Screen Display (OSD). The camera offers a resolution of 1000 TV lines. It also combines a rugged, weatherproof (IP 67) design with a sunscreen for either indoor or outdoor use.
DC Auto Iris Varifocal Lens: The focal length of the lens can be adjusted from 2.8mm to 12mm. This allows the camera to be set to cover a wide area or focus in on a specific target.
Concealed Cabling Through the Camera Mount: The power and video cables are concealed in the mount between the camera and the mounting base in order to protect the cables and provide for a more attractive installation.
SECO-LARM's IR Day/Night Color Varifocal CCTV Camera has 42 Hi-Intensity LEDs with DSS (Digital Slow Shutter @ 32x), and WDR (Wide Dynamic Range) all in one, as well as On Screen Display (OSD). The camera offers a resolution of 1000 TV lines. It also combines a rugged, weatherproof (IP 67) design with a sunscreen for either indoor or outdoor use.
DC Auto Iris Varifocal Lens: The focal length of the lens can be adjusted from 2.8mm to 12mm. This allows the camera to be set to cover a wide area or focus in on a specific target.
Concealed Cabling Through the Camera Mount: The power and video cables are concealed in the mount between the camera and the mounting base in order to protect the cables and provide for a more attractive installation.
- 1000 TV Lines
- Megapixel CMOS
- Built-in service monitor port
- Weatherproof (IP67) for outdoor use
- DC Auto iris varifocal 2.8~12mm lens with ICR (IR Cut Filter)
- WDR (Wide Dynamic Range) provides clear images under intense backlight conditions
- Intelligent features such as motion detection and zoom control
- 32x DSS (Digital Slow Shutter) amplifies existing light to capture images in almost total darkness
- 3-Axis mounting arm
- 12VDC/24VAC Operation
- OSD (On-Screen Display) for convenient programming of special features
- Defog to improve image clarity in poor conditions
Type | Bullet |
Image sensor | 1/3" 1.3MP Sony IMX138 |
Horiz. Resolution | 1000 TV lines |
Effective Pixels | 1305(H) x 1049(V) |
DNR | Yes |
WDR | Yes |
On Screen Display (OSD) | Yes |
Minimum Illumination | 0 Lux (IR LEDs ON) |
Sync | Internal |
Video Output | 1.0Vp-p Composite video, 75Ω |
Lens | 2.8~12mm |
No. of IR LEDs | 42 |
LED Range | Up to 100' (30m) |
S/N Ratio | >50dB |
Shutter Control | Auto Electric Shutter (AES), 1/60~1/60,000 s |
Operating Voltage | 12VDC/24VAC |
Current Draw | LEDs OFF- 190mA@12VDC, LEDs ON- 530mA@12VDC |
Gamma Correction | Yes |
Gain Control | Auto |
White Balance | Auto |
IP Rating | IP67 |
Operating Temperature | -14º~122º F (-10~50º C) |

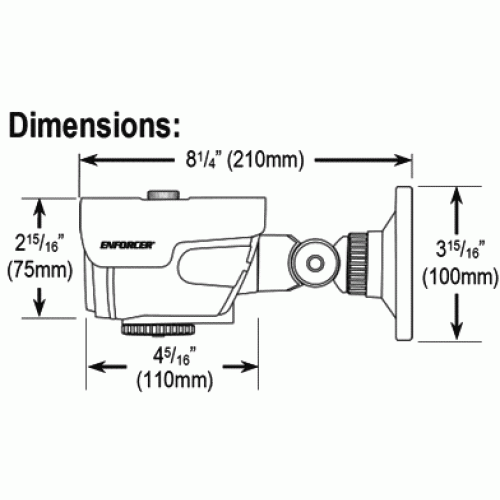

Dimensions | 3-15/16"x3-15/16"x8-1/4" (100x100x210 mm) |
Cable Length | 5'10" (1.8m) |
Weight | 3-lb 1.4-oz (1,400g) |
