24VAC CCTV Power Supply, PTC fuses, 4 Outputs, 24VAC, 1.1A / Output, 4A Max Total (Discontinued)
Model Number: EVP-1SA4P4UL

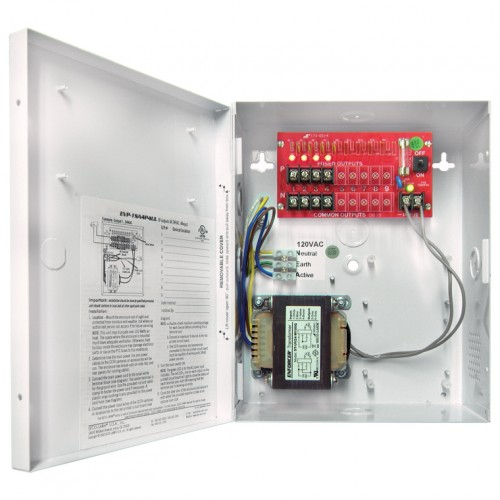

SECO-LARM's line of AC CCTV power supplies is the cost-effective way to power multiple cameras for security or access control applications. The power supplies provide a 24VAC output for 4, 9, or 16 fused outputs. All models include individual PTC* fused outputs and individual status LEDs, as well as surge protection and input fusing to provide the highest level of protection. All models are packaged in a tough metal enclosure.
SECO-LARM's line of AC CCTV power supplies is the cost-effective way to power multiple cameras for security or access control applications. The power supplies provide a 24VAC output for 4, 9, or 16 fused outputs. All models include individual PTC* fused outputs and individual status LEDs, as well as surge protection and input fusing to provide the highest level of protection. All models are packaged in a tough metal enclosure.
- AC or DC models available
- Individually protected PTC*-type outputs
- Individual red status LED indicator
- Main power switch with surge protection
- Includes enclosure and transformer
- 73/4"x31/2"x10"
(196x89x254mm)
Input Voltage | 120VAC, 60Hz |
Fuse type | PTC |
Output Voltage | 24VAC |
Number of Outputs | 4 |
Max. Current / Output | 1.1 Amp per Output |
Total Supply Current | 4 Amp Max. Total |
Dimensions | 7-3/4" x 3-1/2" x 10" (196 x 89 x 254 mm) |
