24VAC CCTV Power Supplies - 8 Amps, 16 Outputs, PTC fuses (Discontinued)
Model Number: EVP-1SA8P16UL
Discontinued Product

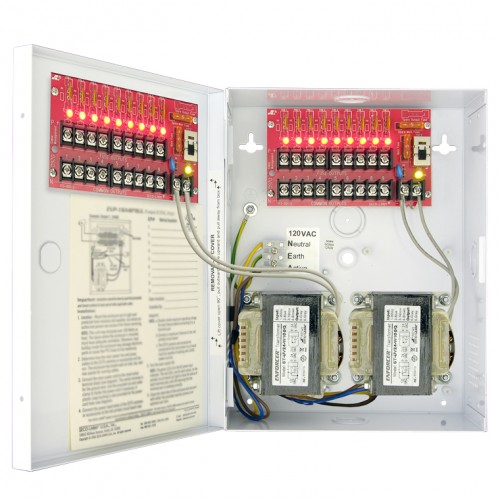

The ENFORCER CCTV Power Supplies centralize the power sources for multiple AC-powered CCTV cameras and/or CCTV accessories. The power input, power transformer, and all fused power outputs are enclosed in one heavy-duty, easy-to-install enclosure.
2PTC = Positive Temperature Coefficient
Discontinued Product
The ENFORCER CCTV Power Supplies centralize the power sources for multiple AC-powered CCTV cameras and/or CCTV accessories. The power input, power transformer, and all fused power outputs are enclosed in one heavy-duty, easy-to-install enclosure.
- Each output individually fused (PTC2- type fuses)
- Output fuses rated 1.1 Amps @ 250VAC
- Individual red LED status indicator for each output
- Main power switch to turn on/off power to outputs
- Input: 110VAC, 60Hz. Output: 24VAC
- UL-approved power transformer
- Total output current: 8.0 Amps1
- Main fuse rated 5.0 Amps @ 250VAC
- Spare fuse and 6-foot power cord included
- Heavy-duty steel case to protect the power connections
- Removable steel cover for easy access to power connections
- Ventilation holes to prevent heat build-up
- Dimensions – 10”x73/4”x31/2”
- Knock-out on the cover for optional cam lock
- AC terminal block for easy connection from transformer to 6-foot power cord
2PTC = Positive Temperature Coefficient
Input Voltage | 120VAC, 60Hz |
Fuse type | PTC |
Output Voltage | 24VAC |
Number of Outputs | 16 |
Max. Current / Output | 1.1 Amp per Output |
Total Supply Current | 8 Amp Max. Total |
Dimensions | 7-3/4" x 3-1/2" x 10" (196 x 89 x 254 mm) |
