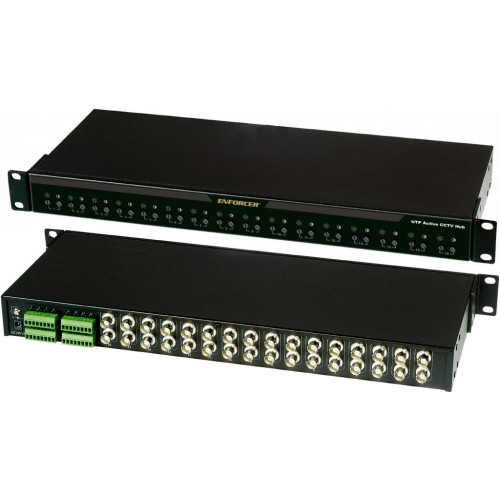

CCTV 1U Rack-Mount 16-Port Active Hub
Model Number: EVT-AH16-VT2Q
- Transmits color video signal up to 5,000ft (1.5km) using an active balun transmitter and 3,940ft (1.2km) using a passive balun.
- Active receiver hub with adjustable contrast and brightness.
- Active operation amplifies the video signal for excellent picture quality at long distances.
- Compact 1U height fits most standard 19" equipment racks.
- 16 Video inputs (terminal block).
- 32 Video outputs (2 per channel, BNC connectors).
- Feeds camera signals to any standard video multiplexer, switcher, or DVR via coax cables.
- High immunity from interference — Built-in impedance-coupled device and noise filter.
- Built-in video surge protection and ground loop isolation.
- Status LEDs indicate video signal for each channel.
- Easy installation with removable terminal blocks.
- Cable management brackets included.
- Rack mount or stackable. Allows for rack, wall, desk, or shelf mounting. Other optional mounting brackets available.
- Power input: Dual voltage - 12/24 VDC/VDC.
- 1.5 Amp 12VDC power adapter included.
- Perfect for use with DVRs.
Video Input Ports | Terminal blocks, 2 wires per channel |
Video Input Cables | Unshielded twisted pair (UTP), Cat2 or better |
Video Output Ports | 2 BNC connectors per channel (32 total), 1Vp-p, 75Ω |
Video Output Cables | Coaxial |
Active to Active Range | 5,000ft (1.5km) |
Passive to Active Range | 3,940ft (1.2km) |
Video Format | NTSC, PAL, SECAM |
Power | Voltage range: 12~24 VAC/VDC (1.5A@12VDC power adapter included) |
Surge Protection | Video |
Case | Steel cabinet, black matte finish |
Operating Temperature | 32°~131° F (0°~55° C) |
Weight | 5-lb (2.2kg) |
Dimensions | 1U, 19"x 6-11/16" x 1-3/4" (482 x 170 x 44 mm) |
