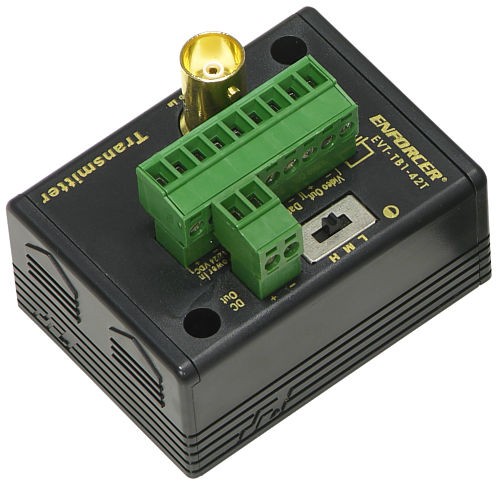

Active Video Balun - Active Transmitter (Discontinued)
Model Number: EVT-TB1-42T
The fast, easy, and low-cost way to connect a CCTV camera to a monitor, multiplexer, or video recorder. These amplified video baluns allow the video signal of a single CCTV camera to be transmitted long distances over low-cost Cat5e/6 unshielded twisted pair (UTP) cable. They are great for both full-motion color and full-motion monochrome cameras, and increase the flexibility of where such cameras can be mounted. These CCTV baluns also work over existing UTP cabling, making them perfect for use in nearly any building or across an entire campus.
The fast, easy, and low-cost way to connect a CCTV camera to a monitor, multiplexer, or video recorder. These amplified video baluns allow the video signal of a single CCTV camera to be transmitted long distances over low-cost Cat5e/6 unshielded twisted pair (UTP) cable. They are great for both full-motion color and full-motion monochrome cameras, and increase the flexibility of where such cameras can be mounted. These CCTV baluns also work over existing UTP cabling, making them perfect for use in nearly any building or across an entire campus.
- Transmits a monochrome video signal up to 1.5 miles (2.4km) or color up to
0.9 miles (1.5km) - 12VDC power - adapter included, or optional
24VAC transformer - Uses low-cost Cat5e/6 cable instead of costly
coaxial cables - Includes a BNC connector and terminal blocks - No need to waste time crimping
RJ-45 connectors - High immunity from interference - Built-in impedance coupled device and
noise filter - Easy installation
- Gold-plated BNC connector for added reliability and
longer life
| Max. Range | Color 5,000' (1,524m), B/W 8,000' (2,438m) |
| Maximum input | 1.0Vp-p, 75 ohms, BNC connector |
| Insertion loss | < 2dB per pair from DC~5Hz |
| Return loss | > 15dB from DC~5MHz |
| Common Mode Rejection | 60dB, 15KHz~5MHz |
| Power | 12VDC, adapter included, or optional 24VAC transformer |
| Wire Type | UTP (Unshielded Twisted Pair) 16~24 AWG |
| Wire Category | Category 2 or better |
| Impedance | (BNC): 75Ω@1MHz, Terminal Block: 100Ω@1MHz |
| Attenuation | DC~5MHz, 1.5dB max |
| Frequency response | DC~5MHz |
| UTP Connection | Terminal Blocks |
| Video Format | RS170, NTSC, PAL, SECAM, CCIR |
| Operating Humidity | 0~95% |
| Operating Temperature | 7º~329º F (-14º~165º C) |
| Case | Black ABS Plastic |
| Red LED | Confirms power on/off |
| Green LED | Confirms video signal received (Rx) |
| Adjustments | 3-position range switch (high, medium, low) |
| Current Draw | 40mA@12VDC |
