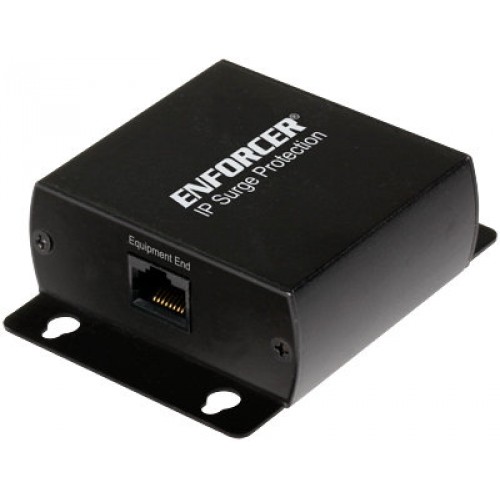

IP Surge Protector
Model Number: IPV-PD88Q
- Helps prevent damage to sensitive computer or CCTV equipment such as cameras, monitors, digital video recorders, video splitters, PCs, servers or networking hubs
- Intercepts repeated surges and spikes that could damage network equipment
- Installs on Cat5e/6 4-pair UTP cable with RJ45 jacks
- Passive operation – no external power required
- Includes a grounding post
Bandwidth | Up to 1GHz |
Maximum Input | 7.6Vp-p |
Insertion Loss | <0.2dB |
Return Loss | 16dB @ 100Ω |
Frequency Response | Up to 3dB@113MHz |
Insulation Resistance | 10,000 MΩ |
Discharging Current | 100A |
Maximum Surge Voltage | 4KV |
Surge Life | 300 surges @ 100A |
Surge Protection | 1ns |
Surge Resistance | 0Ω |
Connector- In | RJ45 |
Signal Passing Capability | Breakdown voltage- 7.6V, Clamping voltage- 10.0V |
Connector- Out | RJ45 |
Impedance | 42 Ω |
Material | Aluminum |
Operating Temperature | -40º~194º F (-40º~90º C) |
Dimensions | 3-7/16" x 2-5/8" x 1-1/16" (87 x 67 x 27 mm) |
Weight | 4.4-oz (126g) |
