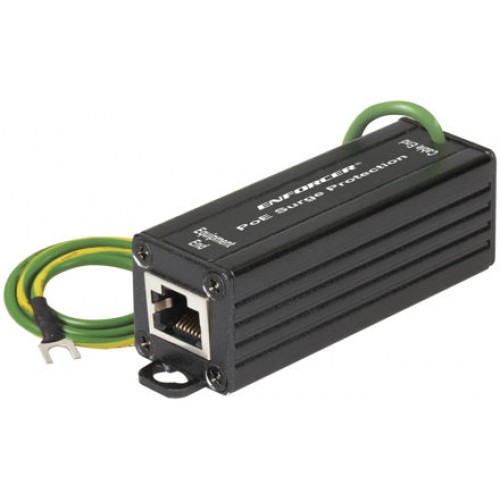

Power over Ethernet (POE) Surge Protector (Discontinued)
Model Number: IPV-P188Q
- Helps prevent damage to sensitive networking equipment
- Intercepts repeated surges and spikes that could damage network equipment
- Installs on a Cat5e/6 4-pair UTP cable with RJ45 jacks
- Power and signal line protection
- 10/100 Base-T Cat5/5e compatible
- Supports mid-span PoE and end-span PoE
- Complies with 802.3af and 802.3at for PoE
- Includes a 16” grounding wire for convenient connection to ground
| Bandwidth | Up to 68MHz |
| Maximum Input | 58Vp-p |
| Insertion Loss | <0.2dB |
| Return Loss | 16dB @ 100Ω |
| Frequency Response | Up to 3dB@68MHz |
| Insulation Resistance | 10,000 MΩ |
| Discharging Current | 400A |
| Maximum Surge Voltage | Up to 4KV |
| Surge Life | 30000 surges @ 4kV |
| Surge Protection | 1ns |
| Surge Resistance | 0Ω |
| Power Passing Capability | 45W |
| Connector- In | RJ45 |
| Signal Passing Capability | Breakdown voltage- 58V, Clamping voltage- 77V |
| Connector- Out | RJ45 |
| Impedance | 42 Ω |
| Material | Aluminum |
| Operating Temperature | -40º~185º F (-40º~85º C) |
| Dimensions | 3-1/2" x 1" x 1" (88x26x25 mm) |
| Weight | 2.8-oz (80g) |
