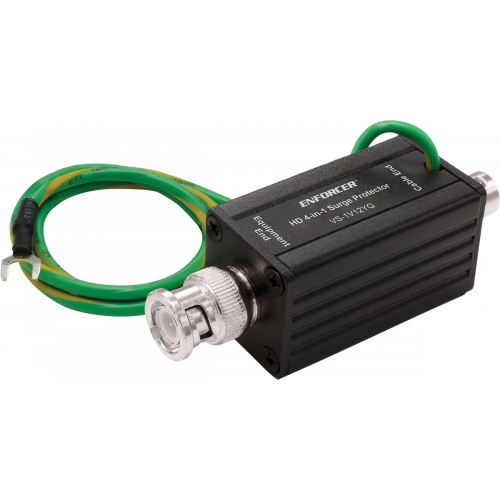

HD 4-in-1 Surge Protector
Model Number: VS-1V12YQ
The ENFORCER HD 4-in-1 Surge Protector is a passive device that helps protect sensitive HD and Analog CCTV equipment from power surges. The device can be deployed in new installations or existing ones.
The ENFORCER HD 4-in-1 Surge Protector is a passive device that helps protect sensitive HD and Analog CCTV equipment from power surges. The device can be deployed in new installations or existing ones.
- Helps prevent damage to sensitive HD-TVI, HD-CVI, HD-AHD, and Analog CCTV cameras, DVRs, and switches
- Intercepts repeated surges and spikes that could damage HD-TVI, HD-CVI, HD-AHD, and Analog CCTV equipment
- Passive operation – no external power required
- Includes a 16" grounding wire for convenient connection to ground
Bandwidth | Up to 270MHz |
Maximum Input | 6Vp-p |
Insertion Loss | 0.8dB@42MHz |
Return Loss | 16dB |
Frequency Response | Up to 3dB@10MHz |
Insulation Resistance | 10,000MΩ |
Discharging Current | 15kV |
Maximum Surge Voltage | 4kV |
Surge Life | 300 surges@200A |
Surge Protection | <1ns |
Surge Resistance | 0Ω |
Connector- In | BNC Male (75Ω) |
Signal Passing Capability | Breakdown voltage: 6V, Clamping voltage: 25V |
Connector- Out | BNC Female (75Ω) |
Impedance | ~75Ω (BNC-to-BNC) |
Cable Length | 15-3/4" (400mm) |
Material | Aluminum |
Operating Temperature | -40°~194° F (-40°~90° C) |
Dimensions | 3-1/8"x1"x1" (79x25x25 mm) |
Weight | 2.3-oz (65g) |
