4K HDMI Splitter - 4 HDMI Outputs

Model Number: MVD-AH14-01Q

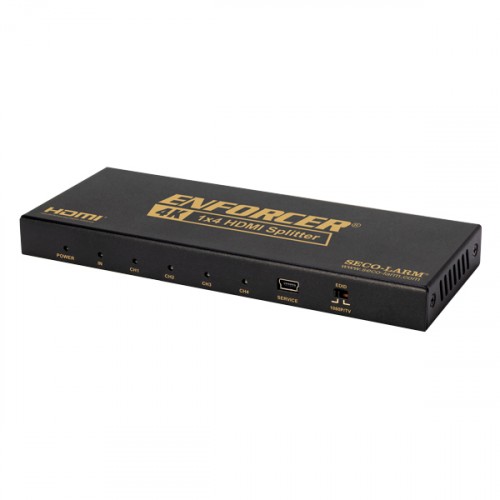

The ENFORCER 4K HDMI Splitters allow for one HDMI source to simultaneously transmit to up to four different monitors. The splitters work with most HDMI devices, delivering the very best in digital audio and video signals with HD resolutions of up to 4K@60Hz. An LED indicator clearly displays power status as well as which outputs are active. The 4K HDMI Splitters can be daisychained up to four levels for even more outputs.

Transmits an HDMI source to up to four different HDMI displays
Additional splitters can be daisy-chained for more outputs
HDR Support
Supports up to 4K@60Hz resolution and 3D video
Individual status LEDs for each HDMI output
Two EDID management settings
One 5VDC power supply included

IMPORTANT: This product is designed to extend an HDMI® signal. This product is not to be used to bypass any copy protection or other content protection system. All usage of this product shall conform to the license that comes with the content.

Specifications Related Products

Type	4K HDMI® Splitter
Maximum Single Link Range	4K*2K@60hz
Deep Color	24bit RBG/YCBCR 4:4:4
Video Formats Supported	HDMI 2.0b, HDCP 2.2
Audio Formats Supported	LPCM 7.1 CH Dolby TrueHD, DTS-HD Master Audio
Output Video	HDMI®
Resolutions Supported	4K/1080p/1080i/720p/576p/576i/480p/480i
Video Amplifier Bandwidth	600MHz/18Gbps
Video Input Connector	1x HDMI® Type A 19-pin female
Max. Input Cable Length	24AWG: 50’ (15m); 26AWG: 30’ (10m); 28AWG: 16’ (5m)
Video Output Connector	4x HDMI® Type A 19-pin female
Max. Output Cable Length	24AWG: 50’ (15m); 26AWG: 32’ (10m); 28AWG: 16’ (5m)
Operating Voltage	5VDC
Power Supply	1A@5VDC (2.1mm plug)
ESD Protection	±8kV (air-gap discharge), ±4kV (contact discharge)
Current Draw	650mA@5VDC
Operating Temperature	32°~104° F (0°~40° C)
Operating Humidity	20~90% RH (no condensation)
Dimensions	2-1/2"x6-7/16"x5/8" (63x163x16 mm)
Weight	9-oz (260g)
