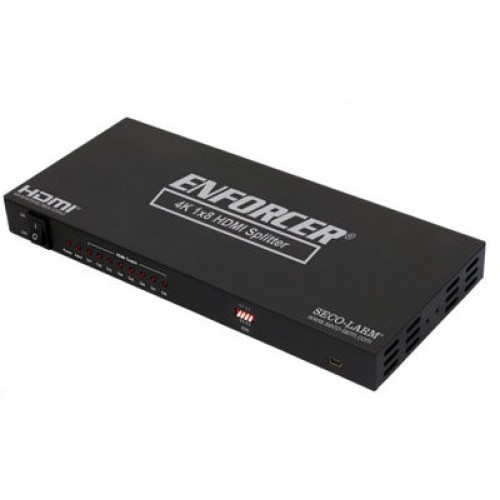

4K HDMI Splitter - 8 HDMI Outputs
Model Number: MVD-AH18-01Q
This HDMI® Splitter allows for one HDMI® source to simultaneously transmit to up to eight different monitors. Supports up to 1080p and 3D video.
This HDMI® Splitter allows for one HDMI® source to simultaneously transmit to up to eight different monitors. Supports up to 1080p and 3D video.
- Transmit an HDMI® source to up to eight different HDMI® displays
- Supports up to 4K resolution and 3D video
- Individual status LEDs for each HDMI® output
- EDID Management settings
- One (1) 5VDC Power supply included
| Type | 4K HDMI® Splitter |
| Input Video Signal | 3.3V |
| Input DDC Signal | 5Vp-p (TTL) |
| Maximum Single Link Range | 4K*2K@30hz |
| Deep Color | 48bit |
| Video Formats Supported | High-speed HDMI®, HDCP 1.4 |
| Audio Formats Supported | LPCM, Dolby-AC3, DTS7.1, DSD |
| Output Video | HDMI® |
| Resolutions Supported | 4K/1080p/1080i/720p/576p/576i/480p/480i |
| Video Amplifier Bandwidth | 10.2Gbps |
| Video Input Connector | 1x HDMI® Type A 19-pin female |
| Max. Input Cable Length | 24AWG: 50’ (15m); 26AWG: 30’ (10m); 28AWG: 16’ (5m) |
| Video Output Connector | 8x HDMI® Type A 19-pin female |
| Max. Output Cable Length | 24AWG: 50’ (15m); 26AWG: 32’ (10m); 28AWG: 16’ (5m) |
| Operating Voltage | 5VDC |
| Power Supply | 2A@5VDC (2.1mm plug) |
| ESD Protection | ±8kV (air-gap discharge), ±4kV (contact discharge) |
| Current Draw | 1820mA@5VDC |
| Operating Temperature | 32°~104° F (0°~40° C) |
| Operating Humidity | 20~90% RH (no condensation) |
| Dimensions | 4-7/16” x 10-3/16” x 1-1/4” (112 x 258 x 32 mm) |
| Weight | 25.4-oz (720g) |
