HDMI Extender over Single CAT5e/6 UTP cable (Discontinued)
Model Number: MVE-AH030Q
Discontinued Product: Replaced by MVE-AH1E1-01NQ
Discontinued Product: Replaced by MVE-AH1E1-01NQ

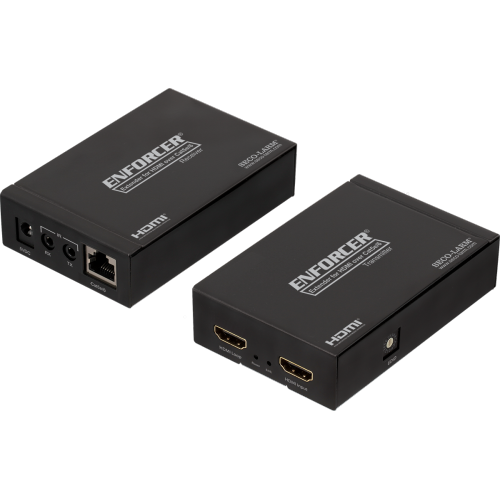

The ENFORCER HDMI Extender over Single Cat5e/6 extends the range of traditional HDMI cabling methods by using an active transmitter and receiver to send video and audio over a single Cat5e/6. HDMI formats as large as 1080p can be transmitted up to 196ft (60m) between the two units with zero signal loss by using integrated circuits in the receiver and transmitter.
- Status LEDs - Indicate power and HDMI® connection are complete
- Signal Strength - Active operation ensures that the signal will remain strong over the length of
the cable - Distance - Capable of maintaining a clean HDMI® signal up to
196ft (60m) - Formats Supported - Supports both progressive and interlaced formats: 1080p/1080i/720p/576p/576i/480p/480i
- Plug and Play - Comes as a complete set consisting of a transmitter and receiver, power supplies, and
IR extenders - Zero Signal Loss - Integrated circuits in the transmitter and receiver clean, buffer, and amplify the HDMI signal to prevent signal loss and ensure a clear signal regardless of the length of
the cable - Bi-directional IR - Send IR signals from the source to the monitor or from the monitor to the source for discrete operation
of devices - EDID Management - Eliminate sync issues by choosing from 9 different internal EDID settings, the HDMI® loop display, or the main
HDMI display - Digital Audio Out - Send HDMI® audio directly to an external sound bar or
A/V Receiver - ARC Option Switch - Enable Audio Return Channel (ARC) to automatically switch the audio source to that shown by the
display device - HDMI® Loop Output - Secondary HDMI® output for
local displays
Input Video Signal | 3.3V |
Input DDC Signal | 5Vp-p (TTL) |
Deep Color | 24bit |
Video Format Supported | High-speed HDMI®, HDCP 1.2 |
Audio Formats Supported | LPCM, Dolby-AC3, DTS7.1, DSD |
Output Video | HDMI |
Resolutions Supported | 1080p/1080i/720p/576p/576i/480p/480i |
Range | Cat6- Up to 196' (60m), Cat5e- Up to 98' (30m) |
Video Amplifier Bandwidth | 1.65Gbps |
Maximum Input Cable Length | 24AWG (15m), 26AWG (10m), 28AWG (5m) |
Maximum Output Cable Length | 24AWG (15m), 26AWG (10m), 28AWG (5m) |
Video Input Connector | HDMI Type A 19-pin female |
Video Output Connector | HDMI Type A 19-pin female |
Operating Voltage | 5VDC |
Power Supply | 1A@5VDC (2 adapters) (2.1mm plug) |
ESD Protection (Human Body Model) | +8kV (air-gap discharge), +4kV (contact discharge) |
Cat5e/6 Wiring Standard | T-568B |
Current Draw | Transmitter- 550mA@5VDC, Receiver- 450mA@5VDC |
Operating Temperature | 32°~104° F (0°~40° C) |
Operating Humidity | 20% to 90% RH (no condensation) |
Dimensions | 3-15/16" x 2-9/16" x 1" (100 x 65 x 26 mm) |
Weight | 7.2-oz (205g) (each) |
Maximum Single Link Range | 1080p |
