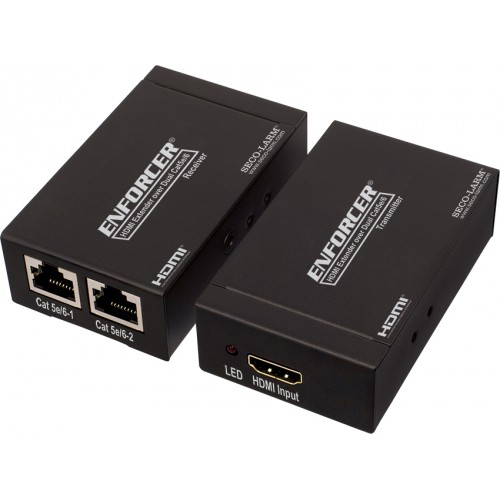

HDMI Extender over Dual CAT5e/6 UTP cables (Discontinued)
Model Number: MVE-AH010Q
With a range of 196ft (60m) at 1080p resolution, the MVE-AH010Q uses two low-cost Cat5e/6 cables to transmit HDMI signals instead of heavier, less flexible, and more expensive HDMI cables.
With a range of 196ft (60m) at 1080p resolution, the MVE-AH010Q uses two low-cost Cat5e/6 cables to transmit HDMI signals instead of heavier, less flexible, and more expensive HDMI cables.
- Status LEDs - Indicate power and HDMI® connection complete
- Signal Strength - Active operation ensures that the signal will remain strong over the length
of the cable - Distance - Capable of providing a clear HDMI® signal up to
196ft (60m) - Formats Supported - Supports both progressive and interlaced formats:
1080p/1080i/720p/576p/576i/480p/480i - Plug and Play - Comes as a complete set consisting of a transmitter and receiver; no adjustments or settings need
to be made - Zero Signal Loss - Integrated circuits in the transmitter and receiver clean, buffer, and amplify the HDMI® signal to prevent signal loss and ensure a clear signal regardless of the length
of the cable - DVI Support - Can be used with an HDMI® to DVI adapter to support multiple components of a home
theater system
Input Video Signal | 3.3V |
Input DDC Signal | 5Vp-p (TTL) |
Deep Color | 24bit |
Video Format Supported | High-speed HDMI®, HDCP 1.2 |
Audio Formats Supported | LPCM, Dolby-AC3, DTS7.1, DSD |
Output Video | HDMI |
Resolutions Supported | 1080p/1080i/720p/576p/576i/480p/480i |
Range | Cat6- Up to 196' (60m), Cat5e- Up to 98' (30m) |
Video Amplifier Bandwidth | 1.65Gbps |
Maximum Input Cable Length | 24AWG (15m), 26AWG (10m), 28AWG (5m) |
Maximum Output Cable Length | 24AWG (15m), 26AWG (10m), 28AWG (5m) |
Video Input Connector | HDMI Type A 19-pin female |
Video Output Connector | HDMI Type A 19-pin female |
Operating Voltage | 5VDC |
Power Supply | 1A@5VDC (1 adapter) (2.1mm plug) |
ESD Protection (Human Body Model) | ±8kV (air-gap discharge), ±4kV (contact discharge) |
Cat5e/6 Wiring Standard | T-568B |
Current Draw | Transmitter - 550mA@5VDC Receiver- 450mA@5VDC |
Operating Temperature | 32°~104° F (0°~40° C) |
Operating Humidity | 20~90% RH (no condensation) |
Dimensions | 3-1/8" x 1-5/8" x 1" (81 x 49 x 25 mm) |
Weight | 5.3-oz (150g) (each) |
Maximum Single Link Range | 1080p |
