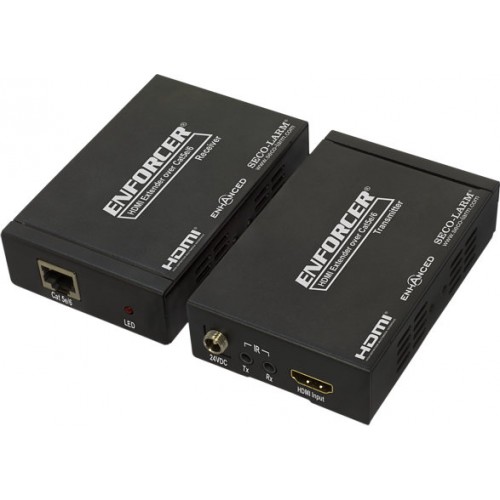

Enhanced HDMI® Extenders over Single CAT5e/6 UTP Cables, range up to 230ft (70m)
Model Number: MVE-AH1H1-01GQ
The ENFORCER Enhanced HDMI® Extender over Cat5e/6 extends the range of HDMI® signals to send video and audio up to 330ft (100m)* over a single Cat5e/6 cable. The extender includes an IR transmitter and receiver, allowing the user to use a remote control at one end of an installation to control a device at the opposite end. A single power supply can power both devices from either end of the installation.
The ENFORCER Enhanced HDMI® Extender over Cat5e/6 extends the range of HDMI® signals to send video and audio up to 330ft (100m)* over a single Cat5e/6 cable. The extender includes an IR transmitter and receiver, allowing the user to use a remote control at one end of an installation to control a device at the opposite end. A single power supply can power both devices from either end of the installation.
- Supports resolutions from 480i up to 4Kx2K/UHD
- Plug and play operation – comes as a complete set
- Bi-directional IR for remote control extension
- Includes one (1) 24VDC locking power supply – set can be powered at either end
- Signal Strength – Active operation ensures that the signal strength will remain strong over the length of the cable
- Distance – The Enhanced HDMI® Extender over Cat5e/6 can transmit a clear HDMI® signal up to 230ft (70m
- Formats Supported – The Enhanced HDMI® Extender over Cat5e/6 supports both progressive and interlaced formats: 4K/1080p/1080i/720p/576p/576i/480p/480i
- Plug and Play – The Enhanced HDMI® Extender over Cat5e/6 comes as a complete set consisting of a transmitter, receiver, power supply, and IR adapters
- Zero Signal Loss – Integrated circuits in the transmitter and receiver clean, buffer, and amplify the HDMI® signal
- Bi-Directional IR – Send IR signals from the source to the monitor or from the monitor to the source for discrete operation of devices
- Connect Multiple Units – Repeat up to four sets to extend HDMI® range up to 918ft (280m
)
Input Video Signal | 3.3V |
Input DDC Signal | 5Vp-p (TTL) |
Deep Color | 48-Bit |
Video Format Supported | High-speed HDMI® with 3D, HDCP 1.2 |
Audio Formats Supported | LPCM, Dolby-AC3, DTS 7.1, DSD |
Output Video | HDMI® |
Resolutions Supported | 4K/1080p/1080i/720p/576p/576i/480p/480i |
Range | Cat6- Up to 230’ (70m), Cat5e- Up to 196’ (60m) |
Range - 4K | Cat6- Up to 130’ (40m), Cat5e- Up to 98' (30m) |
Video Amplifier Bandwidth | 10.2Gbps |
Maximum Input Cable Length | 24AWG: 50' (15m); 26AWG: 32' (10m); 28AWG: 16' (5m) |
Video Input Connector | HDMI® Type A 19-pin female |
IR Pass-through Frequency | 30~50kHz |
Operating Voltage | 24VDC |
Power Supply | 1A@24VDC (1 adapter) (2.1mm plug) |
ESD Protection (Human Body Model) | ±8kV (air-gap discharge), ±4kV (contact discharge) |
Cat5e/6 Wiring Standard | T568-B |
Current Draw | Transmitter- 150mA@24VDC, Receiver- 250mA@24VDC |
Operating Temperature | 32°~104° F (0°~40° C) |
Operating Humidity | 20~90% RH (no condensation) |
Dimensions | 3-15/16” x 2-9/16” x 1” (100 x 65 x 25 mm) |
Weight | 7.1-oz (200g) (each) |
Maximum Single Link Range | 4Kx2K@30Hz |
