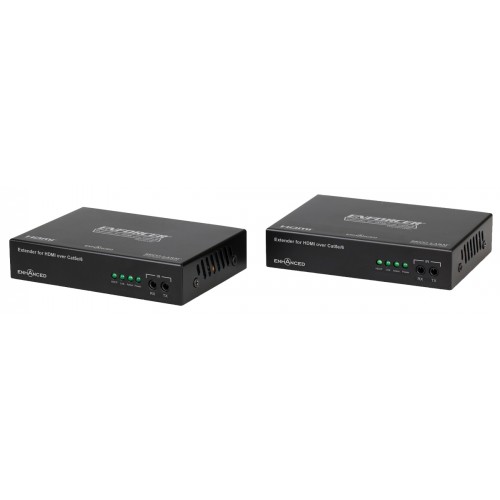

Enhanced HDMI over Single CAT5e/6 (Discontinued)

Model Number: MVE-AT11-01NQ

Extend HDMI signals up to 230ft (70m) at 1080p over a single Cat5e/6 cable
Plug and play operation - comes as a complete set
Active operation ensures that the signal strength will remain strong over the length of the cable
Integrated circuits in the transmitter and receiver clean, buffer, and amplify the HDMI signal
Repeat up to four sets to extend HDMI range up to 918ft (280m)
Includes 1 transmitter, 1 receiver, 2 5VDC power supplies, 1 IR transmitter, and 1 IR receiver

IMPORTANT: This product is designed to extend an HDMI signal over Cat5e/6. This product is not to be used to bypass any copy protection or other content protection system. All usage of this product shall conform to the license that comes with the content.

Specifications

Input Video Signal	0.5~1.0 Vp-p
Input DDC Signal	5Vp-p (TTL)
Deep Color	36-bit
Video Format Supported	High-speed HDMI with 3D, HDCP 1.2
Audio Formats Supported	LPCM, Dolby-AC3, DTS 7.1, DSD
Output Video	HDMI
Resolutions Supported	1080p/1080i/720p/576p/576i/480p/480i
Range	Cat6: Up to 230' (70m)
Video Amplifier Bandwidth	10.2Gbps
Operating Voltage	5VDC
Power Supply	2A@5VDC (2 adapters) (2.1mm plug)
Cat5e/6 Wiring Standard	T568-B
Current Draw	Transmitter- 450mA@5VDC, Receiver- 900mA@5VDC
Operating Temperature	5º~131º F (-15º~55º C)
Operating Humidity	5~90% RH (no condensation)
Dimensions	4-5/16" x 2-15/16" x 7/8" (110 x 75 x 23mm)
Weight	9.2-oz (260g)
Maximum Single Link Range	1920x1200, 1080p
