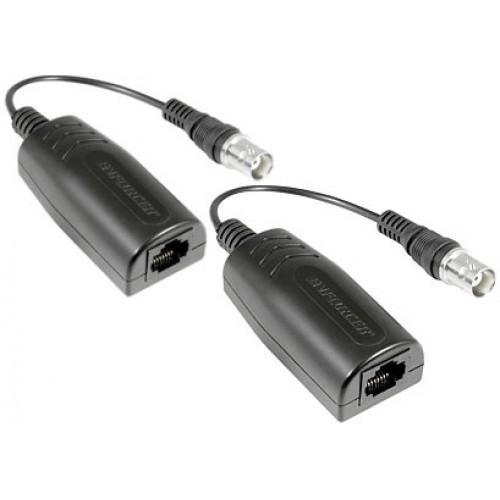

Passive Ethernet Extender over Coax

Model Number: NE-SE01-020Q

The ENFORCER Passive Ethernet Extender over Coax is designed to extend the range of any TCP/IP device beyond the 300ft (100m) limit of Ethernet. The unit does not filter out any protocols, codes, or applications, compatibility with any IP camera and its software.

1 Channel Ethernet over coax
10/100 Mbps Full duplex*
Transmission distance:**
- Up to 650ft (200m)@10Mbps
- Up to 325ft (100m)@100Mbps
Passive, no power required
Built-in surge protection
Fast and easy to install
Bidirectional – can operate as transmitter and receiver
Sold as a set

* Use only with 10/100 Switches
** Actual transmission range will vary depending on equipment used and cable grade

Specifications

Range	10Mbps Up to 650' (200m), 100Mbps Up to 325' (100m)
Input Connector	RJ45
Output Connector	BNC
Standard	IEEE802.3 10Base-T/100Base-T
Link Cable	RG59/U or better
Ethernet Speed	10/100 Mbps
Operating Temperature	-4º~131º F (-20º~55º C)
Dimensions	2-3/8” x 1-1/8” x 13/16” (60 x 29 x 20 mm)
