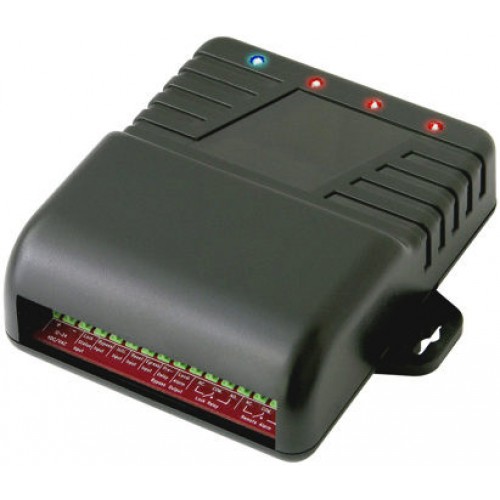

Programmable Delayed Egress Timer Module, 12~24 VDC Operation
Model Number: SA-025EQ
- 12~24 VDC Operation
- 3 Relock modes to meet different installation requirements:
- Standard manual relocking,
- BOCA (Building Officials Code Administrators) relocking,
- Timed relocking
(1~60 seconds).
- Programmable nuisance delay timer
(0~3 seconds) - Adjustable pre-delay timer
(1~30 seconds) - Adjustable post-delay timer
(1~60 seconds) - Selectable manual or automatic relocking after
power loss - Lock relay output
(Form C, 10A@24VDC) - Remote alarm relay output
(Form C, 10A@24VDC) - Local alarm output
(transistor ground, 500mA@12VDC) - Door status input
- Status LEDs show relay status
- Bypass input immediately
releases locks - Free egress input allows easy exit during
the delay
Operating Voltage | 12~24 VAC/VDC |
Current Draw - Local Alarm | 35mA@12VDC |
Current Draw - Pre-Delay | 90mA@12VDC |
Current Draw - Standby | 120mA@12VDC |
Current Draw - Timer Module Only | 15mA@12VDC |
Lock Control Output | 10A@24VDC, Form C, NO/NC/COM |
Remote Alarm Output | 10A@24VDC, Form C, NO/NC/COM |
Local Alarm Output | Transistor ground, 500mA@12VDC |
