Multi-Purpose Programmable Timer with Protective Case

Add to Compare

Model Number: SA-025Q

•
•
•

The ENFORCER^® SA-025Q Multi-Purpose Programmable Timer with Protective Case is suitable for use with a wide range of timed security and access control products, such as electric door strikes, sirens, or bells. DIP switches for programming and auto-sensing of input voltage make installation easy.

• Timer can be set from 1 second to 60 minutes
• Protective case:
  • Protects the product from the environment
  • Prevents dust and dirt build up
  • Makes product easier to mount
  • Easy to hide and protect the terminal
  • Dimensions: 3-1/4”x2-11/16”x1-1/16” (83x68x27.5 mm)
• Can be triggered by positive voltage (+DC), or closure or opening of dry contact
• Relay can be programmed to activate at the start or at the end of the timing cycle
• Relay can also be set to activate for one second at the end of the timing cycle
• Programmable for pulse (flash) activation
• Built-in reset function to manually reset timing cycle
• Form C relay, contacts rated 8A@120VAC/24VDC
• LED indicates relay is energized
• 12VDC/24VDC Operation (auto sensing)
• Current: 1mA (standby), 50mA (active)

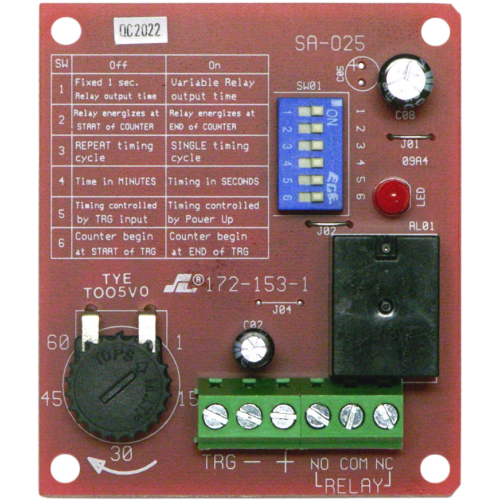

• Board measures 2⁷/₈" x 2¹/₂" (73x63 mm)
• Functions programmed via DIP switches – no jumpers to cut
