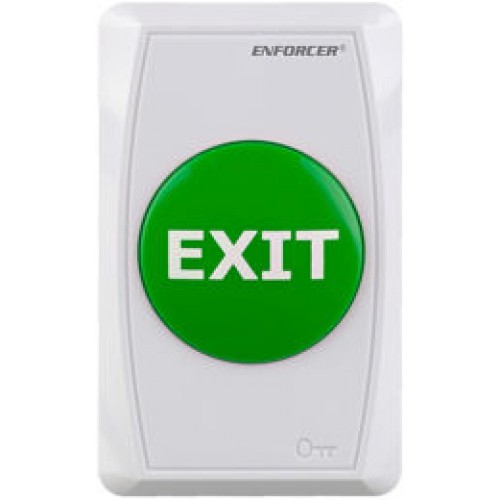

Flush-Mount RTE Wall Plate with Push Button (Discontinued)
Model Number: SD-7286-GWQ
2" Diameter green mushroom pushbutton on white plate, DPDT
- Large green 2" diameter pushbutton
- Flush mount, protrudes only 9/16" (15mm)
- Aluminum back plate fits to single-gang box
- White ABS plastic front cover snaps to back plate
- DPDT Momentary switch, 5A@125VAC contact rating
| Type | Flush-Mount RTE Plate with Green Pushbotton |
| Contact Rating | 5A@125VAC or 3A@12VDC |
| Switch Type | DPDT momentary |
| Dimensions | 4-1/2" x 2-3/4" x 1-9/16" (114 x 69.5 x 39mm) |
