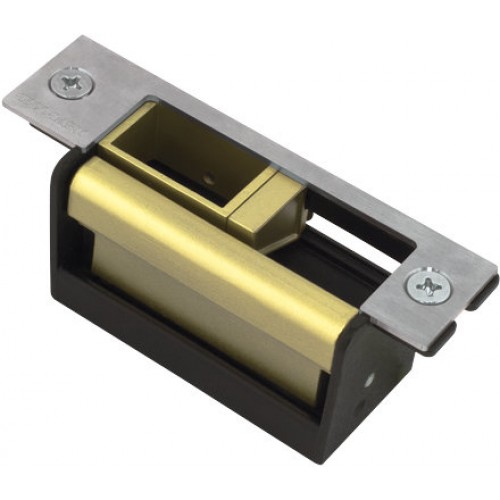

Electric Door Strike with Vertical Adjustment (Discontinued)
Model Number: SD-996C-U1VQ
- Vertical adjustable deadbolt opening, sliding shim keeper, and deadlatch ramp accommodates a wide range of lock types
- Accommodates deadbolts up to 1”
- Field selectable for fail-safe or fail-secure
- Reversible non-handed design fits either right-hand or left-handed doors

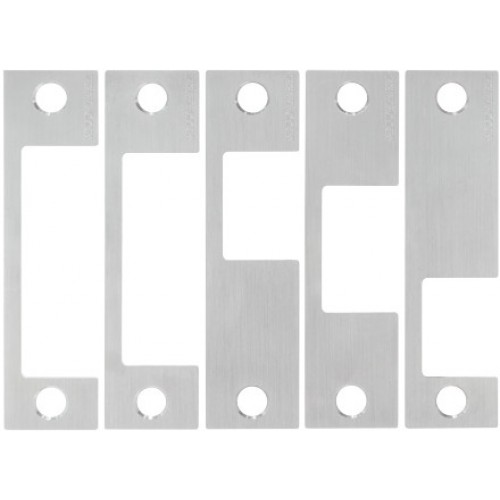

- Includes 5 different stainless-steel faceplates
- Includes trim plate to hide gaps in installation
- 1,500-lb holding force
- 12 VDC/VAC
- Tested to 1 million cycles
- Low current draw: 250mA@12VDC
| Operating Voltage | 12VDC / VAC +15% |
| Current Draw | 250mA@12VDC |
| Latch Throw | 1” (25mm) max with 1/8” (3mm) door gap |
| Jaw Strength | 1,500-lb |
| Operating Temperature | 14°F~113°F (-10°~45° C) |
| Operating Humidity | 0~95% |
| Dimensions | 1-13/16”x1-5/8”x3-5/16” (47x42x84 mm) |
| Weight | 1-lb 5.8-oz (618g) |
