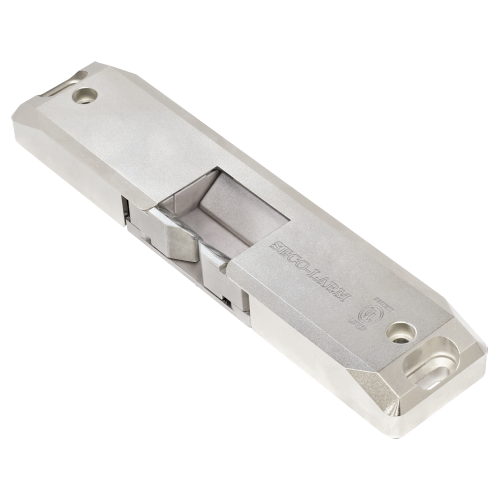

3/4" Surface-Mount Electric Rim Strike (Discontinued)
Model Number: SD-998C-NUQ
The SECO-LARM SD-998C-NUQ Surface-Mount Electric Rim Strike is designed for rim exit devices with a throw Pullman latchbolt. The strike features selectable fail-safe/fail-secure operation, 12/24 VDC operating voltage, horizontal adjustment, and a thick surface-mount metal housing which eliminates frame cutting when installing.
The SECO-LARM SD-998C-NUQ Surface-Mount Electric Rim Strike is designed for rim exit devices with a throw Pullman latchbolt. The strike features selectable fail-safe/fail-secure operation, 12/24 VDC operating voltage, horizontal adjustment, and a thick surface-mount metal housing which eliminates frame cutting when installing.
- 12/24 VDC Operating voltage
- Horizontal adjustment
- Accommodates up to 3/4" Pullman latch
- Reversible non-handed design fits most door frames
- Surface-mount installation on metal or wooden door frames
- Works with standard rim-type exit devices including SECO-LARM SD-962AR-36A, SD-962AR-36G
- Static strength: 1,500-lb (680kg)
- Tested for 250,000 cycles (UL Tested)
- Low current draw: 540mA@12VDC, 270mA@ 24VDC
- Dynamic strength: 70 lb-ft (9.68 kg-m)
- Field-selectable for fail-safe or fail-secure operation
- Spacers included: 3x 1/32"
- Five-year limited warranty
| Operating Voltage | 12/24 VDC |
| Current Draw | 12VDC : 540mA, 24VDC : 270mA |
| Static Strength | 1,500-lb |
| Dynamic strength | 70 ft-lbs. (9.68 m-kgs) |
| Endurance | 250,000 cycles (UL Tested) |
| Operating Temperature | 14°~113° F (-10°~45° C) |
| Operating Humidity | 0~95% |
| Dimensions | 8"x1-3/4"x3/4" (203x45x19 mm) |
