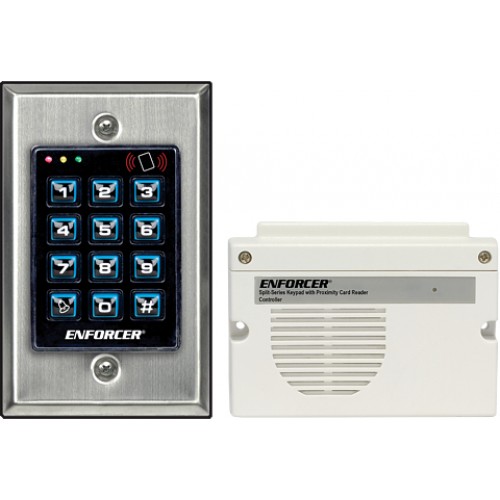

Split Series Keypad with Proximity Card Reader

Model Number: SK-4131-SPSQ

Split series installation for added security – keypad and controller are separate thereby preventing access via keypad tampering
12~24 VDC Auto-adjusting operation
Up to 1,000 possible user codes (000~999) and/or proximity cards for output #1, 100 (001~100) for output #2, 100 (001~100) for output #3
Up to 50 (01~50) possible temporary visitor codes, which can be programmed for one-time or limited-time use (1~99 hours)
- Output #1: Form C relay, 5A@24VDC max.
- Output #2: Form C relay, 1A@24VDC max.
- Output #3: Form C relay, 1A@24VDC max.
Outputs #1, #2, and #3 can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
Tamper output: N.C. Dry contact, 50mA@24VDC max.
Keypad illuminates when a button is pressed; backlight can be programmable for FULL or AUTO in standby mode
Built-in door chime
Built in current limited (750mA) power source for keypad for added security
Keypad active, alarm, duress, and interlock output: Transistor ground, 100mA@24VDC max.
Keypad mounts to a standard single-gang back box (surface-mount back box included)
All features are programmed directly from the keypad: No need for an external programmer
EEPROM Memory protects programmed information in case of power loss
Up to 50 (01~50) duress codes for output #1, 10 (01~09) for output #2, 10 (01~09) for output #3
Programmable egress input with optional warning alarm and delayed egress
Door sensor input for anti-tailgating operation
Interlocking input for connecting to a second keypad for mantrap applications
Simple three wire connection between keypad and controller

Type	Split-Series Keypad with Proximity Card Reader
Operating Voltage	12~24 VDC
Current Draw - Standby	88mA@12VDC
Current Draw - Keypress	115mA@12VDC
Current Draw - Output 1 Active	115mA@12VDC
Current Draw - Output 1 & 2 Active	128mA@12VDC
Current Draw - Output 1, 2 & 3 Active	138mA@12VDC
Current Draw - Total Max	220mA@12VDC
Output 1	Form C - 5A@24VDC
Output 2	Form C - 1A@24VDC
Output 3	Form C - 1A@24VDC
Output - Alarm	100mA@24VDC
Output - Key Active	100mA@24VDC
Output - Duress	100mA@24VDC
Output - Interlock	100mA@24VDC
Output- Tamper	50mA@24VDC
Input - Egress	N.O. Ground
Input - Door Sensor	N.C. Ground
Input - Door Inhibit	N.O. Ground
Input - Doorbell	N.O. Ground
Input - Tamper	N.C. Ground
Proximity Reader Frequency	125kHz (EM125)
Proximity Reader Sensing Distance	1-1/2" (38mm)
Operating Temperature	4°~158°F (-20°~70°C)
Operating Humidity	5~95% (non-condensing)
Dimensions	Keypad - 4-5/8"x2-7/8"x1-1/2" (117x73x38 mm), Controller - 3-7/16"x4-3/4"x1-1/4" (87x120x32 mm)
Weight	Keypad - 6.3-oz (180g), Controller - 8.8-oz (250g)
