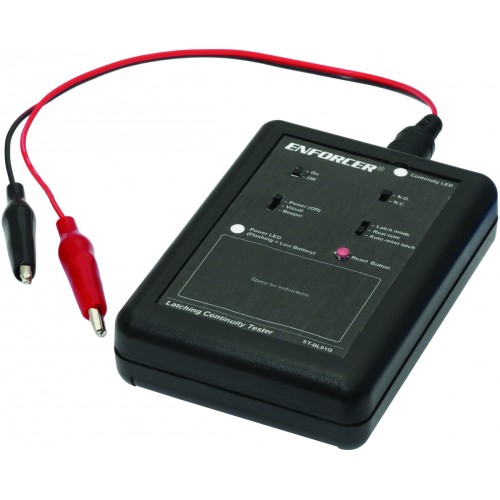

High-Speed Latching Continuity Tester (Discontinued)

Model Number: ST-BL01Q
Discontinued Product
The ENFORCER ST-BL01Q provides continuity testing with LED and/or beeper.
  • Test N.O. and N.C. circuits
  • Verify circuit continuity through beeper or visual indication
  • Built-in LED light
  • Three testing modes:
      - Real-time
    Tester will signal whenever it is triggered.

      - Auto-reset
    Tester will signal continuously for 1 second after it is triggered.

      - Latch mode
    Tester will signal continuously after it is triggered until the reset button is pressed.
  • 100ųs Sensitivity
  • Optional belt clip included for easy transport
  • Battery included
Response Time 100ųs
Continuity Threshold 3kΩ
Power 9-Volt battery (included)
Weight 3.5-oz (99g), 5.1-oz (144g) including 9-volt battery
Dimensions 4-3/16” x 3” x 1-1/16” (105 x 75 x 27 mm)
