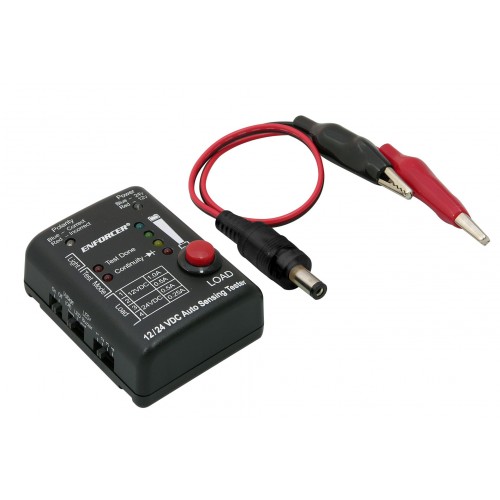

6-in-1 Multi-Purpose 12/24VDC Tester (Discontinued)
Model Number: ST-BT03Q
The ENFORCER ST-BT03Q is more than just a battery tester. Additional features make it the perfect tester for your tool box.
The ENFORCER ST-BT03Q is more than just a battery tester. Additional features make it the perfect tester for your tool box.
- Selectable 250mA, 500mA or
1A load - DC jack input: Plug DC power jacks directly into the tester for
greater flexibility - LEDs indicate test results
- Tests:
1. Voltage
2. Battery Load
3. Voltage Drop
4. Polarity
5. PTC fuse
6. Continuity (LED & Audio) - Included illuminated power connector with alligator test leads of unequal length to prevent them from touching
during testing - Includes audible as well as visual
continuity test
LED Voltage Indicator
*Auto-detection of 12/24VDC
LED Voltage Indicator
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Operating Voltage | 12VDC / 24VDC |
Maximum Load | 0.25 / 0.5 / 1 A (switch selectable) |
Power | 2 x 3VDC CR2016 Batteries included for continuity testing |
Weight | 2.2-oz (62g) |
Dimensions | 2-9/16" x 1-15/16" x 1-1/8" (65 x 49 x 29 mm) |
