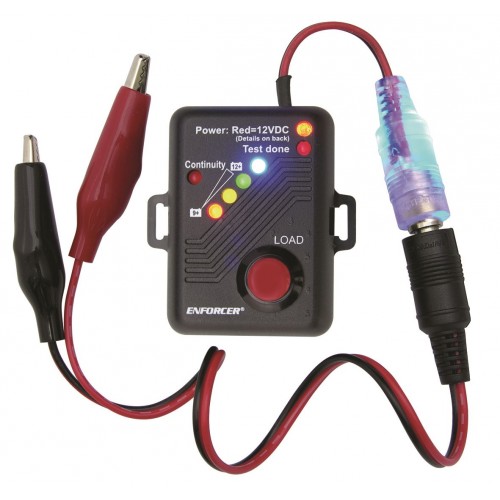

6-in-1 Multi-Purpose 12VDC Tester (Discontinued)
Model Number: ST-BT02Q
- Performs 6 essential tests in the field:
- Continuity Testing: Check the continuity of a circuit, wire run, or dry contact
- Voltage Testing: Check the voltage of power sources in the field without a multimeter
- Load Testing: Apply a simulated 1A or 500mA load to power sources to check the voltage under load
- Polarity Testing: Check polarity of wires using the illuminated power connector
- Voltage Drop Testing: Check the amount of voltage drop over long cable runs
- PTC Fuse Testing: Check the integrity of PTC fuses
- Strength indication LEDs help test Load, Voltage, and PTC Fuses
- Selectable load: 0.5A or 1A to test wiring depending on location, device to be tested, and anticipated voltage drop
- Illuminated power connector: Clearly displays voltage polarity
- Overheat indicator
- Alligator clips included
Operating Voltage | 12VDC |
Maximum Load | 0.5 / 1 A (switch selectable) |
Power - All Other Tests | passive: no power required |
Power - Continuity | 3VDC CR1220 Battery (included) |
Weight | 1.4-oz (40g) |
Dimensions | 2"x1-3/4"x1-1/8" (51x44x29 mm) |
