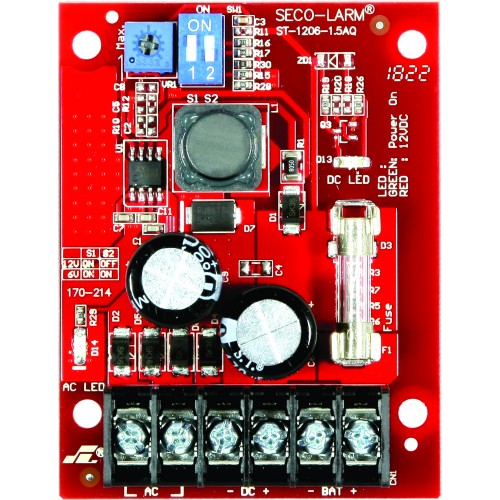

Power Supply/Charger, 1.5A Continuous, 2.0A Peak
Model Number: ST-1206-1.5AQ
- Selectable (6, 12 VDC) voltage output
- Regulated and filtered output voltage
- Short circuit protection
- Thermal protection and compensation
- Built-in backup battery charger
- Switches to backup battery automatically in case of power loss
- Fused output for a regulated charge
- 2 LEDs to indicate AC power input and DC power output status
- Compatible with lead acid or gel-type rechargeable battery
- Reverse polarity protected
- Low operating temperature
- Battery leads and foam tape included
- High efficiency at full load
- Heat-sink-free design
| Operating Voltage | 6, 12 VDC |
| Status LEDs | AC Input: Green, DC Output: Red |
| Current (Continuous) | 1.5A |
| Current (Peak) | 2.0A |
| Output Current | 6V = 100mA, 12V = 220mA |
| Master Fuse | 3A |
| Low Battery Cutoff | When battery voltage is <20 % of set ouput voltage |
| Dimensions | 2-1/8" x 2-3/4" x 1-3/16" (54 x 70 x 30 mm) |
| Operating Temperature | -4°~149° F (-20°~65° C) |
