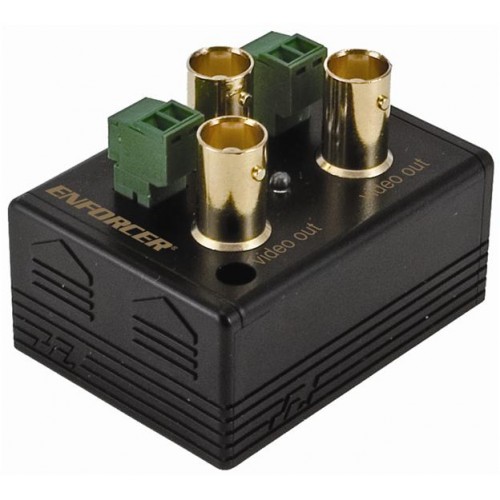

Video Distributors - Up to 1,000ft (300m) Range, 1 Video Input, 2 Video Outputs, (Discontinued)
Model Number: VA-1102B-WQ
- Distributes signal from 1 video input to 2
video outputs - Compatible with both color and
B/W signals - NTSC or PAL compatible
- Transmits up to 1,000ft (300m)
- Connect to a video camera, multiplexer, VCR, DVR
and so on - Patented interlock design connects and locks together with other
SECO-LARM CCTV baluns - LED power indicator
(12VDC or 24VAC) - 12VDC Power supply included
- Pass-through circuit: Power loop out can power nearby devices
- Signals are cleaned and buffered to ensure clear, crisp video is displayed up to
1000' (300m)
* Replaced with VA-1102B-WYQ
| Number of Inputs | 1 |
| Number of Outputs | 2 |
| Video Output Format | NTSC or PAL |
| Video Input Level | 0.8~1.2Vp-p, 75Ω |
| Video Output Level | 1.0Vp-p, 75Ω |
| Image Gain | 10dB |
| Video Bandwidth | 10hz~10MHz |
| Power Supply | 12VDC 500mA / 24VAC |
| Current Draw | 40mA |
| Dimensions | 2-7/8"x1-7/8"x1-5/8" (73x46x42 mm) |
| Weight | 2.3oz (65g) |
