Dome Camera - 4.3mm Lens, Black and White (EIA) (Discontinued)

Model Number: EV-122B-4

SECO-LARM offers both Black & White and Color Dome Cameras for use in those applications which require an attractive, inconspicuous look. The lens for the EV-122B-4 is mounted on a multi-axis gimbal bracket, making the camera ideal for wall-mounting or ceiling mounting. SECO-LARM dome cameras offer high resolution with low lux in a compact and durable enclosure.

Corner Mounting Bracket

Specifications

Chip	A1 Pro
Horiz. Resolution	420 TV lines
Pickup Elements	1/3" CCD: 512x492 pixels
Minimum Illumination	0.1-lux
Scanning System	2:1 interlace - V: 60Hz, H: 15.734KHz
Sync	Internal
Video Output	1.0Vp-p composite output, 75Ω
Lens	4.3mm
S/N Ratio	>48dB (with AGC turned off)
Shutter Control	Auto Electronic Shutter: 1/60~1/100, 000 sec.
Operating Voltage	12VDC(+/-)10%
Current Draw	100mA
Gamma Correction	0.45
Gain Control	AGC
White Balance	Auto
Backlight Compensation	Auto & Manual
Operating Temperature	14°~140° F (-10°~60° C)

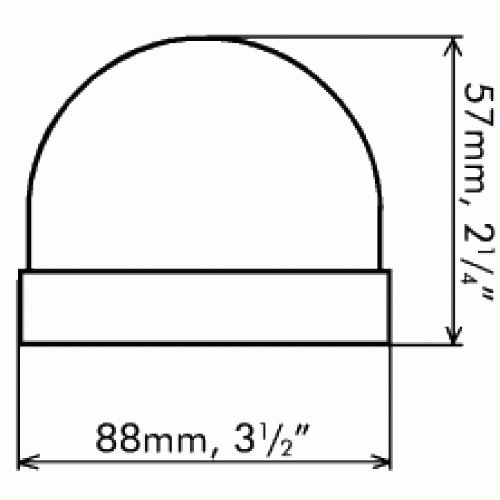

Dimensions	3-1/2"x2-1/4" (88x57 mm)
Weight	4.2-oz (118g)
