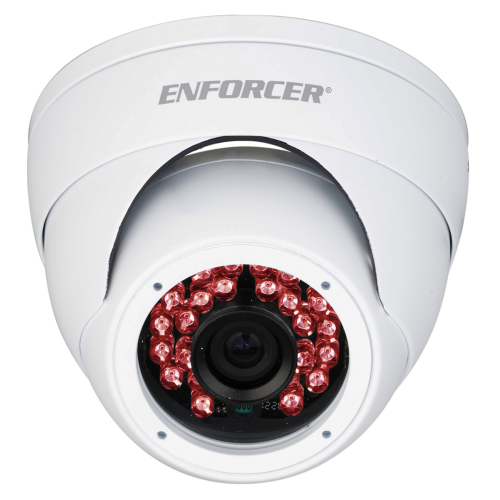

Vandal Rollerball Camera (Discontinued)
Model Number: EV-C2001-N3WQ
- 1/3” CMOS sensor
- 700 TV Lines
- 3.6mm Lens
- 24 IR LEDs, 50ft IR range
- 360° Triple-Axis Rotation
- Heavy-duty vandal-resistant design
- Day/Night operation: 0 Lux LEDs on, 0.05 Lux LEDs off
- Cables concealed in bracket to prevent tampering
- Rugged, weatherproof (IP66) construction
- Split-glass design to eliminate IR reflection
| Type | Vandal Rollerball Camera |
| Image sensor | 1/3” CMOS Sensor |
| Video Output Format | NTSC |
| Horiz. Resolution | 700 TV lines |
| Pickup Elements | 811x508 |
| Minimum Illumination - IR On | 0 Lux |
| Minimum Illumination- LEDs off | 0.5 Lux |
| Scanning System | 2:1 Interlace |
| Sync | Internal |
| Video Output | 1.0V p-p Composite output, 75Ω |
| Lens | 3.6mm |
| No. of IR LEDs | 24 (850nm) |
| IR Cut Filter | Yes |
| LED Range | Up to 50’ (15m) |
| S/N Ratio | ≥50dB |
| Shutter Control | Auto Electric Shutter (AES), 1/60~1/100,000 s |
| Operating Voltage | 12VDC |
| Current Draw | LEDs OFF: 95mA, LEDs ON: 270mA |
| Gamma Correction | 0.45 |
| Gain Control | Auto |
| White Balance | Auto |
| IP Rating | IP66 |
| Operating Temperature | 14°~131° F (-10°~55° C) |
| Dimensions | 3-3/4”x3-5/32” (95x80 mm) |
| Cable Length | 18-7/8” (480mm) |
| Weight | 16-oz (450g) |
