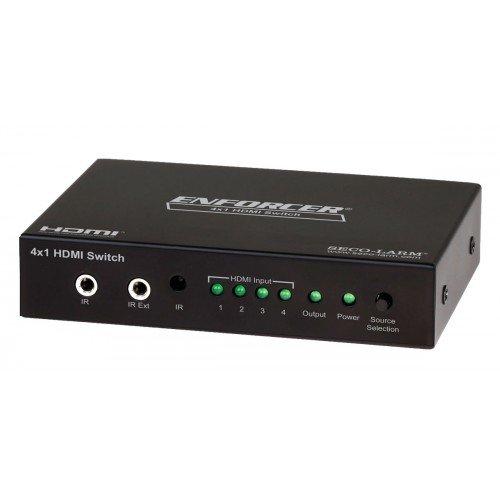

HDMI Switcher, 4 HDMI Inputs (Discontinued)
Model Number: MVS-AH41-01NQ
the content.
- Add three, four, or five HDMI® inputs to almost any high-definition TV or HDMI display
- 1080p
- Supports 3D video
- Individual status LEDs for each HDMI input
- Switch will automatically select the active input for added convenience
- Use with IR over HDMI® Kit (MVE-PN11-01Q) to control the HDMI® switcher or HDMI® sources via remote control even if they have been hidden away
- Includes remote control for switching between inputs and 5VDC power supply
Input Video Signal | 5.0Vp-p |
Video Formats Supported | High-speed HDMI® with 3D, HDCP 1.2 |
Audio Formats Supported | LPCM, Dolby-AC3, DTS 7.1, DSD |
Output Video | HDMI® |
Resolutions Supported | 1080p/1080i/720p/576p/576i/480p/480i |
Video Amplifier Bandwidth | 6.75Gbps |
Video Input Connector | 4x HDMI® Type A 19-pin female |
Maximum Input Cable Length | 24AWG: 50' (15m); 26AWG: 30' (10m); 28AWG: 16' (5m) |
Video Output Connector | 1x HDMI® Type A 19-pin female |
Maximum Output Cable Length | 24AWG: 65' (20m); 26AWG: 50' (15m); 28AWG: 16' (5m) |
Operating Voltage | 5VDC |
Power Supply | External, 1.2A@5VDC (2.1mm plug) |
Current Draw | 490mA@5VDC |
Operating Temperature | 32°~158° F (0°~70° C) |
Operating Humidity | 5% to 90% RH (no condensation) |
Dimensions | 3" x 4-3/8" x 15/16" (76 x 111 x 24 mm) |
Weight | 7.8-oz (219g) |
