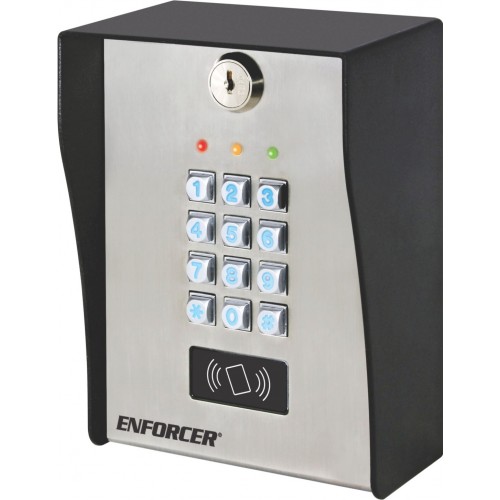

Heavy-Duty Outdoor Access Control Keypad with Proximity Reader
Model Number: SK-3133-PPQ
- Rugged construction: Heavy-duty stainless-steel faceplate with a coated
steel backing - Built-in proximity card reader
- 12~24 VAC/VDC Operation, auto-adjusting
- IP66 Weatherproof rating
- Up to 1,000 user codes and/or proximity cards for output #1, 100 for output #2, and 100 for output #3
- Up to 50 temporary visitor codes
- Egress input lets users exit without keying in the code
- Vandal resistant, suitable for wall, post, or gooseneck mounting
| Type | Heavy-Duty, Outdoor, Stand-Alone Keypad |
| Operating Voltage | 12~24 VAC/VDC |
| Current Draw - Standby | 55mA@12VDC |
| Current Draw- Relays Active | 220mA@12VDC |
| Relay Output- #1 | 5A@24VDC |
| Relay Output- #2 | 1A@24VDC |
| Relay Output- #3 | 1A@24VDC |
| IP Rating | Weatherproof IP66 |
| Egress Inputs | N.O. Ground (P.B) |
| Operating Temperature | -4º~158º F (-20º~70º C) |
| Dimensions | 5-1/4"x7-1/16"x3-3/8" (133x180x85 mm) |
| Weight | 3-lb 12-oz (1.7kg) |
