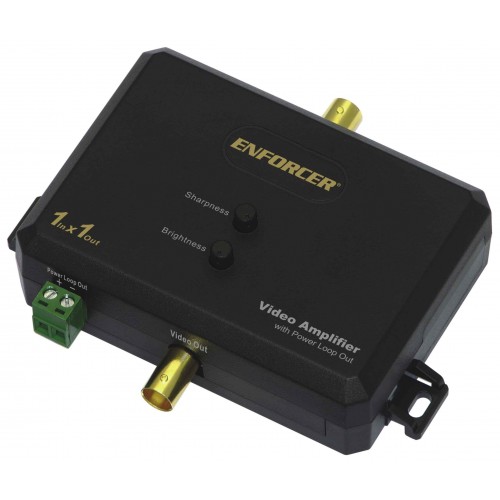

Video Amplifier - 1 Video Input, 1 Video Output (Discontinued)
Model Number: VA-2101B-WQ
- Video amplifier compensates for
video loss - Connect to video camera, multiplexer, VCR,
DVR, etc. - 10db gain control for video and
HF compensation - Compensation for color gain
- Wide bandwidth, video gain compensation amplification
- Separate sharpness and brightness controls for
each channel - NTSC or PAL compatible
- Transmits up to 3,280 ft.
(1,000 meters) - LED to indicate power
- 12VDC Power adapter included
| Input Channels | 1 |
| Output Channels | 1 |
| Maximum Range | 3,280' (1,000m) |
| Video Input Level | 0.8~1.2 Vp-p, 75Ω |
| Video Bandwidth | 10hz -10MHz |
| Video Output Level | 1.0Vp-p (Standard) 75Ω |
| Operating Voltage | 12VDC |
| Current Draw | 100mA |
| Dimensions | 4-15/16" x 4-1/8" x 1-3/8" (125x104x35 mm) |
| Weight | 4.1 oz (116g) |
